Piezo ceramic components are widely used in ultrasonic transducers, cleaning systems, welding equipment, medical ultrasound, sensors, actuators, flow meters, and underwater acoustic devices. Because each application may require different dimensions, resonance frequencies, electrode designs, and installation methods, custom piezo ceramic components are often necessary.
China Ultrasound provides custom piezo ceramic components in a wide range of shapes, sizes, materials, electrodes, and mechanical tolerances. Whether you need a standard PZT ceramic disc, a ring, a tube, a plate, or a complex customized piezo element, we can support production according to your drawings, samples, or application requirements.

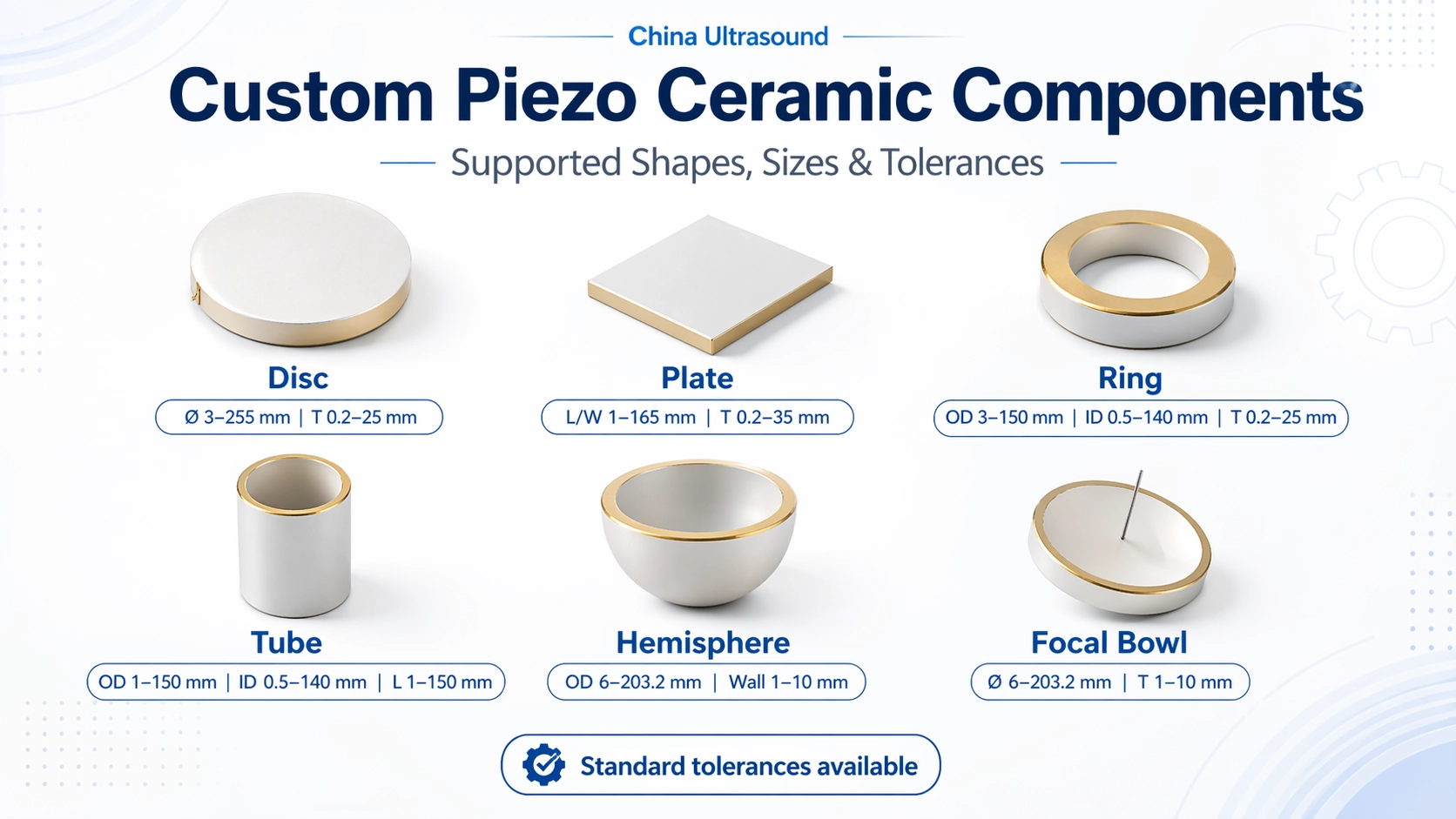

Available Custom Shapes
We can manufacture a variety of piezo ceramic shapes for different ultrasonic and sensing applications. Common custom shapes include:
- Piezo ceramic discs
- Square and rectangular piezo ceramic plates
- Piezo ceramic rings
- Piezo ceramic tubes
- Hemispherical piezo ceramics
- Focal bowl piezo ceramics
- Tapered stave ceramics
- Barrel stave ceramics
- Other customized shapes based on drawings
In addition to the shapes listed above, custom shapes may also be available depending on the required size, ceramic thickness, material properties, electrode layout, and machining process.
Supported Size Ranges
The following size ranges are for general reference. The final manufacturability depends on the ceramic material, shape complexity, electrode design, tolerance requirements, and order quantity.
Piezo Ceramic Disc
| Parameter | Supported Range |
|---|---|
| Diameter | 3 mm – 255 mm |
| Thickness | 0.2 mm – 25 mm |
Piezo ceramic discs are commonly used in ultrasonic cleaning transducers, atomizers, sensors, buzzers, and various power ultrasonic devices. Disc dimensions are usually selected according to the target resonance frequency, vibration mode, and installation structure.
Square and Rectangular Piezo Ceramic Plate
| Parameter | Supported Range |
|---|---|
| Length | 1 mm – 165 mm |
| Width | 1 mm – 165 mm |
| Thickness | 0.2 mm – 35 mm |
Square and rectangular piezo ceramic plates are suitable for sensors, actuators, stacked structures, vibration modules, and custom ultrasonic transducer assemblies. They can be customized for different length, width, thickness, electrode coverage, and polarization requirements.
Piezo Ceramic Ring
| Parameter | Supported Range |
|---|---|
| Outside Diameter | 3 mm – 150 mm |
| Inner Diameter | 0.5 mm – 140 mm |
| Thickness | 0.2 mm – 25 mm |
Piezo ceramic rings are frequently used in bolt-clamped ultrasonic transducers, ultrasonic welding transducers, ultrasonic machining systems, and assemblies that require a central mounting hole. The outside diameter, inner diameter, and thickness can be adjusted to match the mechanical design of the transducer.
Piezo Ceramic Tube
| Parameter | Supported Range |
|---|---|
| Outside Diameter | 1 mm – 150 mm |
| Inner Diameter | 0.5 mm – 140 mm |
| Length | 1 mm – 150 mm |
Piezo ceramic tubes are used in hydroacoustic transducers, flow meters, sensing devices, actuators, and radial vibration applications. Tube components can be designed with customized outside diameter, inner diameter, length, electrode pattern, and polarization direction.
Hemispherical Piezo Ceramic
| Parameter | Supported Range |
|---|---|
| Outside Diameter | 6 mm – 203.2 mm |
| Wall Thickness | 1 mm – 10 mm |
Hemispherical piezo ceramics are suitable for special acoustic field designs, underwater acoustic devices, directional sound applications, and focused ultrasonic structures. They are often selected when the acoustic output direction and curved ceramic geometry are important to the final device design.
Focal Bowl Piezo Ceramic
| Parameter | Supported Range |
|---|---|
| Diameter | 6 mm – 203.2 mm |
| Thickness | 1 mm – 10 mm |
Focal bowl piezo ceramics are designed for applications that require acoustic focusing, such as medical ultrasound, non-destructive testing, high-intensity ultrasound systems, and underwater acoustic equipment. For focused ceramic structures, the diameter, curvature, thickness, electrode area, and frequency target should be evaluated together.
Customizable Parameters
In addition to shape and size, China Ultrasound can support customization of multiple technical parameters. The final design should consider the ceramic material, manufacturing process, electrode structure, and target application. For more background on production steps and process control, you can read our article about the PZT manufacturing process.
| Custom Item | Available Options |
|---|---|
| Material | PZT-4, PZT-5, PZT-8, and other piezo ceramic materials |
| Dimensions | Outside diameter, inner diameter, length, width, thickness, wall thickness, and other dimensions |
| Shape | Disc, plate, ring, tube, hemisphere, focal bowl, stave, and custom shapes |
| Electrode | Silver, nickel, gold, and other electrode options |
| Polarization Direction | Thickness direction, radial direction, axial direction, or custom polarization |
| Frequency | Designed according to target resonance frequency and application requirements |
| Surface Treatment | Grinding, polishing, chamfering, grooving, drilling, and other machining processes |
| Assembly Support | Customization for metal parts, housings, transducer structures, and complete assemblies |
Standard Mechanical Tolerances
For most custom piezo ceramic components, the following standard mechanical tolerances can be used as a reference.
| Item | Standard Tolerance |
|---|---|
| Outside Diameter | ±0.15 mm |
| Inner Diameter | ±0.15 mm |
| Length and Width | ±0.15 mm |
| Thickness | ±0.05 mm |
| Squareness, edge to face | Within 0.15° |
| Concentricity | 0.2 mm TIR |
| Surface Flatness, small flat parts | 12 μm |
| Surface Flatness, large flat parts | 15 μm |
| Parallelism, small gapped parts | 12 μm |
| Parallelism, large gapped parts | 60 μm |
| Surface Finish | Ra 3 μm |
For general “as-fired” dimensions, the typical tolerance is ±0.3 mm or ±1%, whichever is greater. If your application requires tighter tolerances, please provide detailed drawings so that our engineering team can evaluate the machining feasibility.
Information Required for Custom Piezo Ceramic Orders
To help us evaluate your project and provide an accurate quotation, please provide as much of the following information as possible:
- Product shape or drawing
- Required dimensions, including outside diameter, inner diameter, length, width, thickness, or wall thickness
- Piezo ceramic material or intended application
- Target working frequency or resonance frequency
- Electrode material and electrode coverage area
- Polarization direction
- Mechanical tolerance requirements
- Quantity requirement
- Whether wire soldering, bonding, or assembly service is needed
If you do not have a complete technical drawing, you may also send us a sample, sketch, or application description. Our engineering team can help review the structure and recommend suitable material and dimensional options.
Applications of Custom Piezo Ceramic Components
Our custom piezo ceramic components can be used in many ultrasonic, acoustic, sensing, and actuation applications, including:
- Ultrasonic cleaning transducers
- Ultrasonic welding transducers
- Ultrasonic atomizers
- Medical ultrasound devices
- Non-destructive testing probes
- Hydroacoustic transducers
- Flow meter sensors
- Piezoelectric actuators
- Acoustic sensors
- Industrial ultrasonic equipment
For readers who want to understand the basic physical principle behind these components, the external reference Piezoelectricity provides a general introduction to the piezoelectric effect. For ultrasonic inspection applications, Ultrasonic Testing is also a useful background reference.
Why Choose China Ultrasound for Custom Piezo Ceramics?
China Ultrasound has experience in the design and production of piezo ceramic components for ultrasonic and acoustic applications. We support both standard and customized parts, from simple discs and rings to complex shapes for special transducer structures.
Our customization service can help customers match piezo ceramic materials, dimensions, electrodes, polarization direction, and machining tolerances to specific application requirements. Whether your project is in the prototype stage or mass production stage, we can provide practical manufacturing support.
You can explore more available component categories on our piezoelectric ceramic products page.
Request a Custom Piezo Ceramic Quote
If you need custom piezo ceramic discs, rings, tubes, plates, hemispheres, focal bowls, or other special shapes, please contact China Ultrasound with your drawing or application requirements.
Our team will review your specifications and recommend suitable piezo ceramic materials, dimensions, electrode options, and machining solutions for your project.
