Ultrasonic Level Meter AI-ULM

Level Meter AI-ULM

Above Installation Integrated Type

Introduction

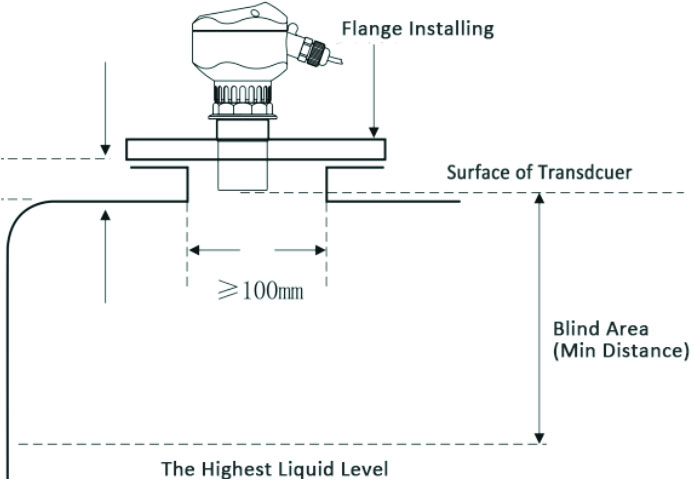

Ultrasonic Level Meter AI-ULM device can measure variety of liquids level &solids distance by using “non-contact” and ultrasonic technology In this device, the ultrasonic sensor is embedded in the control box and must be installed at the top of the tank for measurement This device can transfer information through various communication methods to the server, and you can seethe monitoring of information on the server or app.

Applications
– Measuring and monitoring of
– Liquids in Tank such as agriculture, water and sewage
– industries and other industries
– Solid in tank such as plaster, cement and…in Road
– industry and others
– Input to telemetry systems

Features and Benefits
– Above mounted
– Easy to Install and Configure
– Easy to monitoring information on LED Display
– Designed for years of trouble free operation in harsh
– outdoor environments
– Designed for accuracy & durability in height, distance
– level measurement
– Various ranges to 60 meters
– 9-36V Power Supply
– Standard Analog 4-20mA mA Current Output Optional
– Serial Data Interfaces RS485 or RS232
– LoRaWan, NB-IOT, WIFI, GPRS, 2.5G, 3G, 4G, Bluetooth modules are Optional

Ultrasonic Level Meter AI-ULM Technical parameters:

ModelAI-ULM

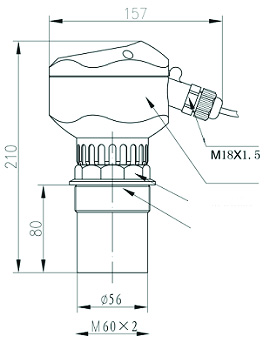

Size122*146*27mm
Power Supply Voltage10-28VDC (Default)
100-230VAC 50Hz (optional)
LED Display1.5mm or more resolution
Transducer Installmentthread or others
Measurement MediaLiquids, Solids
Measurement Range30 up to 60.000 mm
OutputRS485 (Default)
4-20mA (Analog Optional)
0-10V (Optional)
M-BUS (Optional)
Bluetooth, WIFI (Optional)
LoRaWan, NB-IOT(Optional)
GPRS, 3G, 4G (Optional)
Accuracy0.5-1.0%
IP Protection Of TransducerIP68
IP Protection Of TransmitterIP61
Working Temperature-20 ~ +60 C
Storage Temperature-45 ~ +85 C
Working Humidity5 ~ 95%
Galvanic Isolation (1A) Yes
PatentYes
CertificatesCE (LVD, EMC)
Guarantee1 Year
