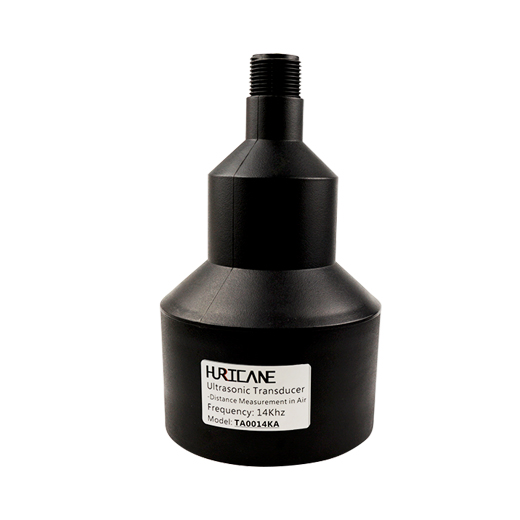

Ultrasonic Distance Sensor TA0014KA

Distance Sensor TA0014KA

14KHz Distance Sensor – Long Distance Measurement 1-45 meters

● Firm semblance seal (PVC outer covering)
● Convenience thread installment (G1)

● Position Location
● Approach measurement
● Traffic Measurement
● Avoiding Obstacles

Distance Sensor TA0014KA_2

Technical parameters:

ModelUltrasonic Distance Sensor TA0014KA
Center Resonant Frequency(kHz)14KHz ± 2.0Khz
Detection Distance1.0~45m
Blind Spots<1.0m
Launch Angle Beam(-6dB full angle)15 ± 2°
Sensitive-55dB min
Electrostatic Capacitance8000PF ± 20%
Minimum Parallel Impedance280Ω ± 30%
Maximum Working Voltage(Pulse – 2% duty cycle)4000Vp-p
Operating Temperature-20 ~ 70℃
Storage Temperature-40 ~ 85°C
Protection LevelIP65
Size (diameter * height, mm)φ140 x 235
InstallationFixed with screw
Case MaterialPVC
Cable Length3M (can be customized)
