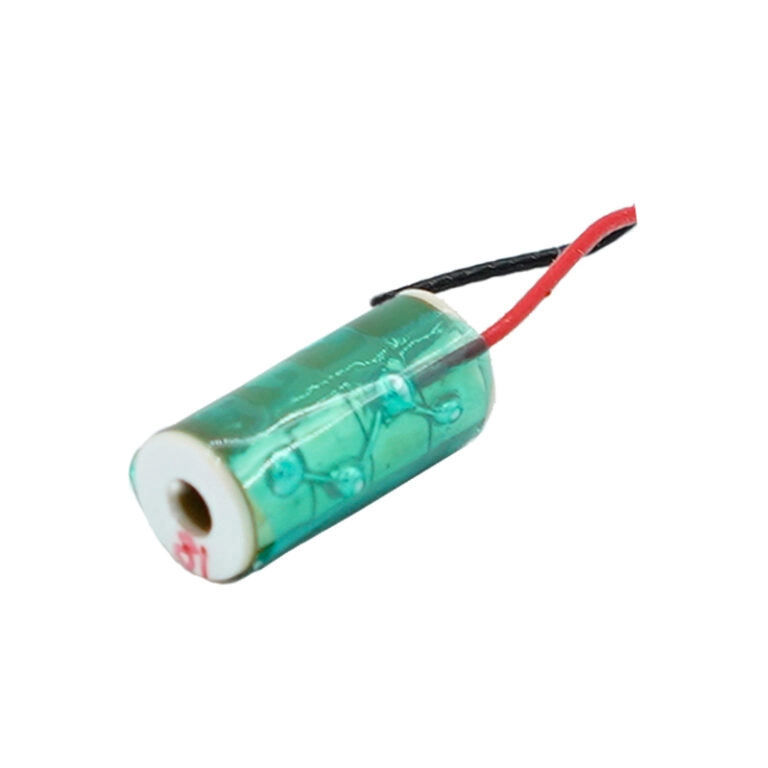

15µm High Force Piezo Stack Actuator 15x9x13.5mm

2026-01-13 Multilayer Piezo Elements

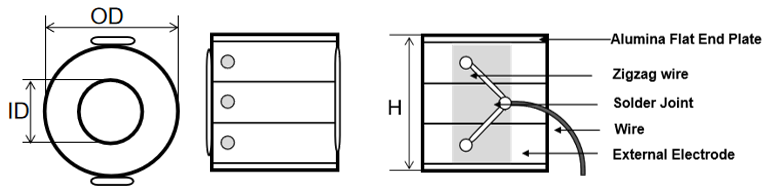

multilayer Rectangle Piezoelectric Stack

70Khz Rectangle Piezoelectric Stack Cylinder

Product Description

70Khz Rectangle Piezoelectric Stack Cylinder is made up of several piezoelectric ceramic sheets and bonded with epoxy resin. These stacks can obtain a free travel significantly larger than that of a single piezoelectric ceramic chip, and maintain the response time of sub millisecond and lower driving voltage range.

Specifications

Stack: HCSC159T1305

Drive Voltage: 150V

Dimensions: 15×9×13.5mm

Capacitance: 8400nF±15%

Resonant Frequency: 70Khz

Displacement: 15µm±15%

Blocking Force: 4250N

Scope of Customization

Dimensions/mm: Ø8.3-Ø3.0，Ø6.0-Ø2.5

Drive Voltage/V: 0~150

Displacement/μm: 9

Characteristic: Sub millisecond response, Submicron resolution, Square & Round & medium hole, Low power consumption, anti magnetic interference, It can be used in vacuum environment, Size / voltage can be customized.
