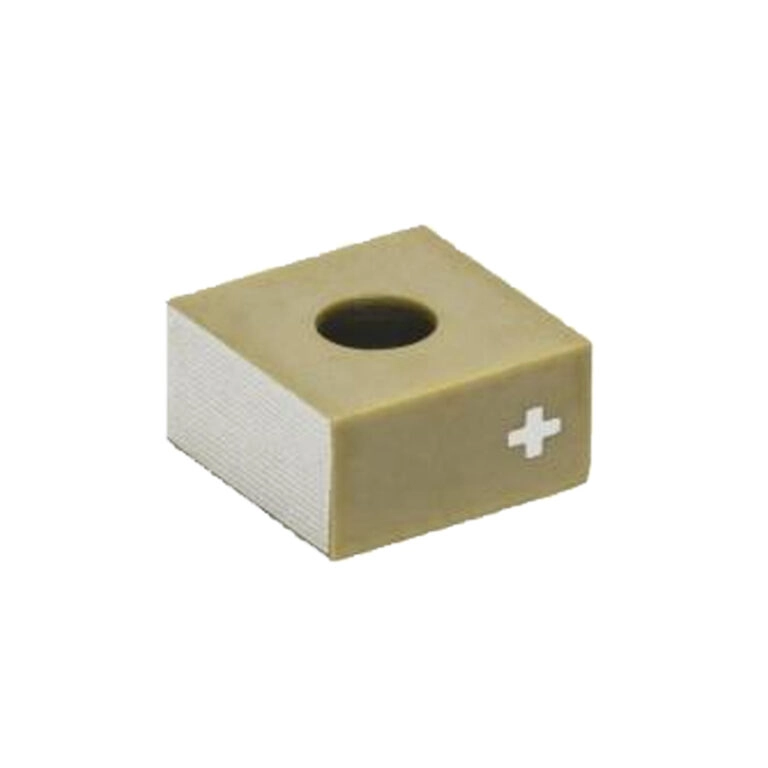

610kHz Piezoelectric Stack 5x5x2mm Hole Type

610Khz Piezoelectric Chips Square with Hole

The displacement is 1 ‰ of its thickness, the standard thickness is 2mm / 3mm, and the flatness is less than ± 5 μm.

Chip Model

HCCSH55T2

Specifications

Drive Voltage: 150V

Dimensions: 5×5×2mm

Capacitance: 160nF±15%

Resonant Frequency: 610Khz

Displacement: 1.8µm±15%

Blocking Force: 800N

Scope of Customization

Dimensions/mm: 5×5（Φ2）7×7（Φ3）

Drive Voltage/V: 0~150

Displacement/μm: 3

Characteristics

Sub-Micron Resolution

Submicron resolution

Square & Round & medium hole

Low power consumption, anti magnetic interference

It can be used in vacuum environment

Size / voltage can be customized.

Additional Information

610Khz Piezoelectric Chips square with hole support other thickness customization.
