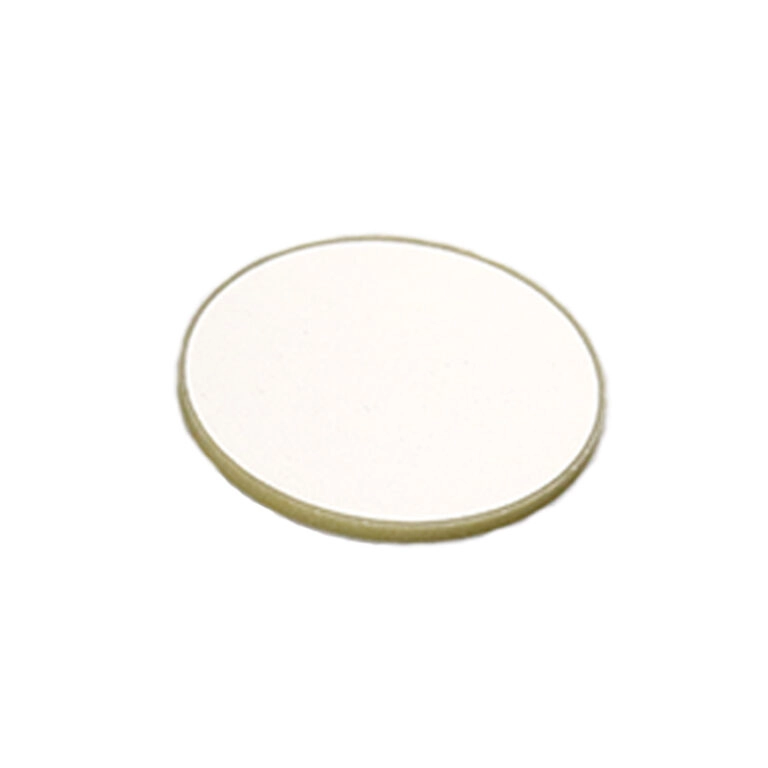

5MHz Piezoelectric Disc 10×0.4mm for Ultrasonic Sensors

Product Overview

5MHz Piezoelectric Disc 10×0.4mm for Ultrasonic Sensors belongs to the Piezoelectric Ceramic Discs category from Hurricane PZT and is prepared for technical evaluation, sample validation and OEM/ODM product development.

For reliable selection, the product should be reviewed together with the required frequency, geometry, electrode design, polarization direction, drive conditions, mounting space and operating environment.

Key Technical Information

• Resonant frequency: 5MHz
• Dimensions: 10×0.4mm
• PZT material: P4
• Capacitance: 2100pF ±15% @ 60Hz/1V
• Resonant impedance: ≤0.5 Ω

Typical Applications

• Ultrasonic Sensors

Customization and Supply Support

For custom projects, we can support dimensional adjustment, PZT material selection, electrode configuration, poling direction, lead connection, sample development and batch production planning.
