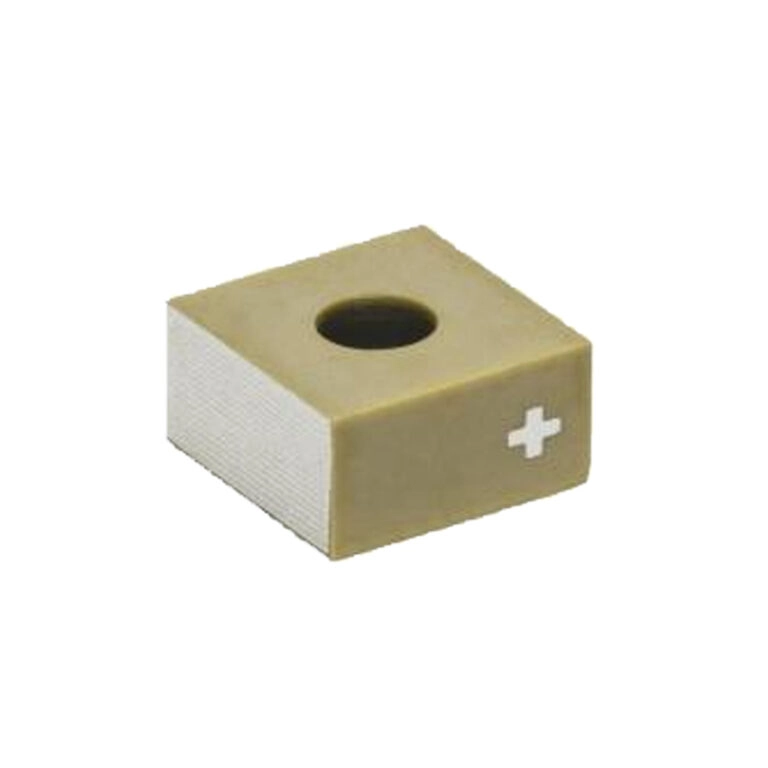

430kHz Piezoelectric Stack 7x7x3mm Hole Type

430Khz Piezoelectric Chips Square with Hole

Product Description

The displacement is 1 ‰ of its thickness, the standard thickness is 2mm / 3mm, and the flatness is less than ± 5 μ m.

430Khz Piezoelectric Chips square with hole support other thickness customization.

Specifications

Chips: HCCSH77T3

Drive Voltage: 150V

Dimensions: 7×7×3mm

Capacitance: 440nF±15%

Resonant Frequency: 430Khz

Displacement: 3µm±15%

Blocking Force: 1600N

Scope of Customization

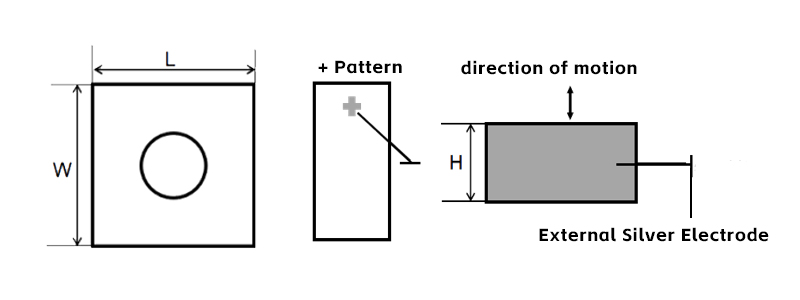

Dimensions/mm: 5×5（Φ2）7×7（Φ3）

Drive Voltage/V: 0~150

Displacement/μm: 3

Characteristic: Sub-Micron Resolution、Submicron resolution、Square & Round & medium hole、Low power consumption, anti magnetic interference、It can be used in vacuum environment、Size / voltage can be customized.
