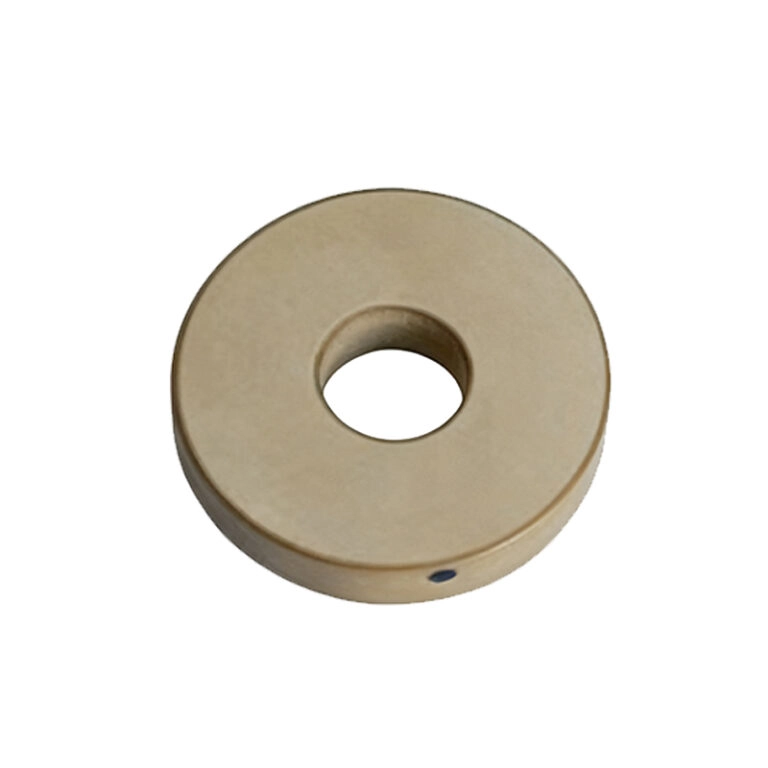

410kHz Piezoelectric Ring 15×6.5x5mm

410kHz Piezoelectric Ceramic Ring

410kHz Piezoelectric ceramic ring is 15×6.5×5mm, Piezoelectric Ceramic Ring with Silver electrodes on both sides.

Model

HCPP8R15605T5

Material

Piezo Material: PZT-8

Dimensions

15 x 6.5 x 5mm

Specifications

Resonant frequency fr: 410 KHzz ± 2%

Electromechanical coupling coefficient Keff: ≥58%

Resonant Mode: Thickness mode vibration application

Resonant impedance Zm: ≤15 Ω

Static capacitance Cs: 0.17nF±20%

Test Condition

25±3 °C 40~70% R.H.

fr, Zm, Kp => Thickness mode vibration application

Cs => LCR meter at 1KHz 1Vrms

Applications

Bolt-clamped ultrasonic transducer, Ultrasonic Sensor, Vibration Sensor, Pressure sensor, Vibration generation, Biodiesel mixing transducer.
