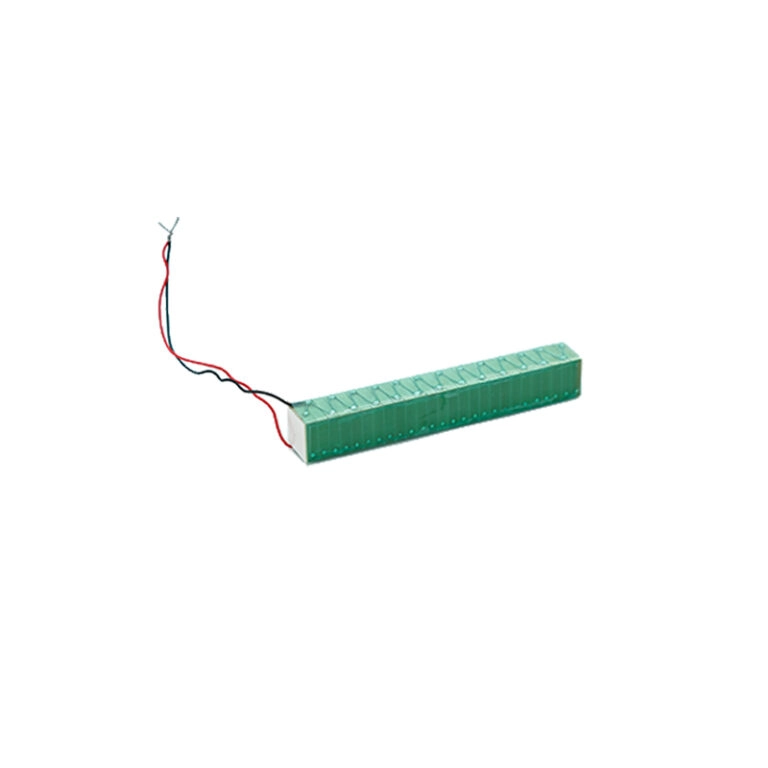

40kHz Piezoelectric Stack 3x3x31mm for Precision Positioning

40Khz Rectangle Piezoelectric Stack Actuators

Product Description

40Khz Rectangle Piezoelectric Stack Actuators is made up of several piezoelectric ceramic sheets and bonded with epoxy resin. These stacks can obtain a free travel significantly larger than that of a single piezoelectric ceramic chip, and maintain the response time of sub millisecond and lower driving voltage range.

40Khz Rectangle Piezoelectric Stack Actuators other thickness customization.

Specifications

Stack: HCSR33T31

Drive Voltage: 100V

Dimensions: 3×3×31mm

Capacitance: 1.85uF±15%

Resonant Frequency: 40Khz

Displacement: 31.5µm ± 15%

Blocking Force: 360N

Scope of Customization

Dimensions/mm: 0.9×0.9~14×14

Drive Voltage/V: 0~75/100/120/150

Displacement/μm: 5~100

Characteristic: Sub millisecond response, Submicron resolution, Square & Round & medium hole, Low power consumption, anti magnetic interference, It can be used in vacuum environment, Size / voltage can be customized.
