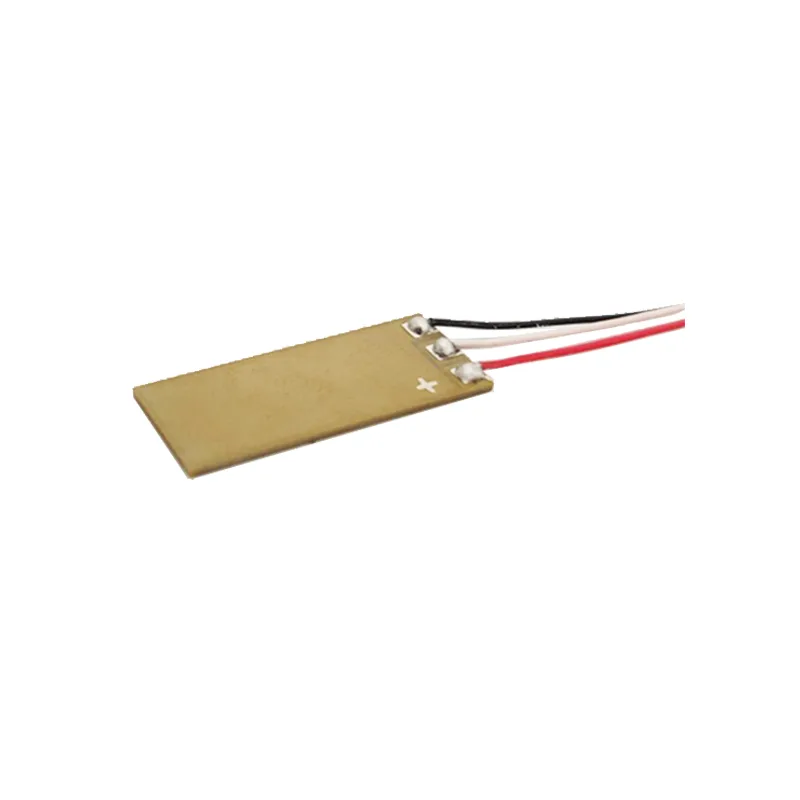

370Hz Piezoelectric Bender 39x19x3mm Multilayer

370Hz Piezoelectric Benders

Product Description

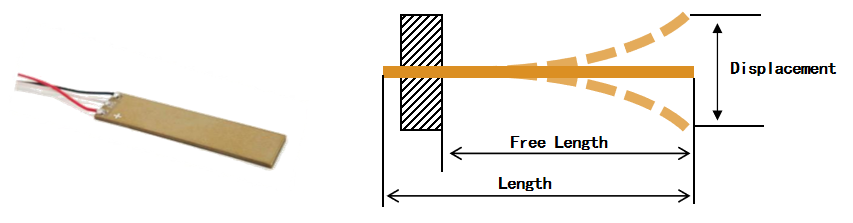

Using all ceramic design to replace the traditional bimorph, ceramic + metal (polymer / carbon fiber) + ceramic structure design, making its output much greater than ordinary bimorph. The bimorph has a double-layer design. When voltage is applied, one layer shrinks and the other expands, resulting in deformation.

Model

Benders: HCBR3919T3

Specifications

Drive Voltage: 150V

Dimensions: 39×19×3mm/32×7.8 x0.8mm

Capacitance: 550nF±15%

Resonant Frequency: 370Hz

Displacement: ±450µm±15%

Blocking Force: 1.5N

Electrode Connection

The fixed end of the bimorph has three electrodes: the red wire is connected to the positive electrode, the black wire is connected to the negative electrode, and the white wire is the common electrode.

Drive Methods

Unilateral Drive

Red wire 0 ~ 150V, white wire 0V;

White wire 0 ~ 150V, black wire 0V.

Bilateral Drive

Red wire +75V, black wire -75V, white wire -75 ~ +75V;

Red wire +150V, black wire 0V, white wire 0 ~ +150V.

370Hz Piezoelectric Benders Characteristic

Multilayer all ceramic technology

Submicron resolution

Low pressure drive, high output

Low power consumption, anti magnetic interference

It can be used in vacuum environment

Size / voltage can be customized
