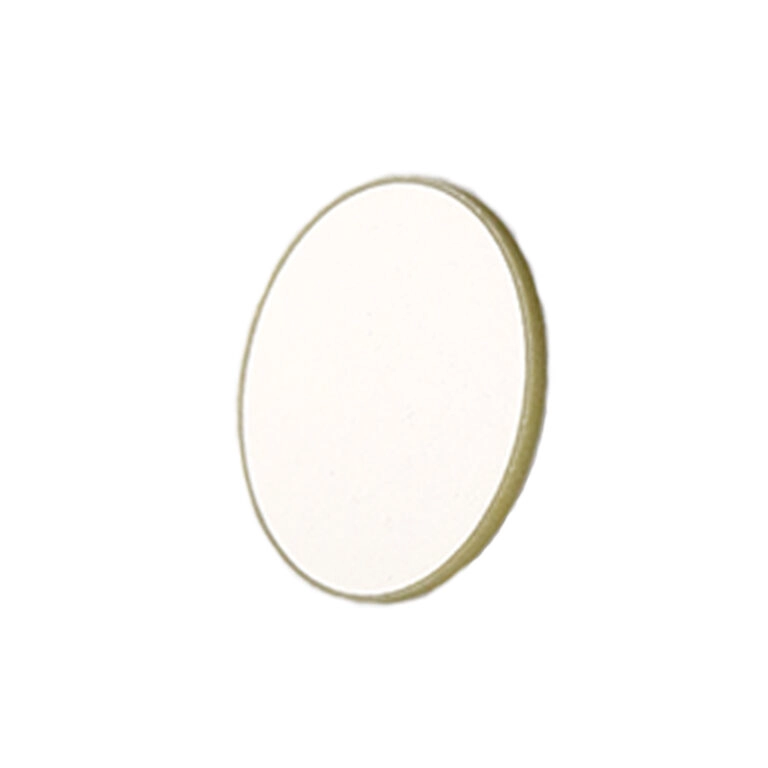

2MHz Piezoelectric Disc 6x1mm

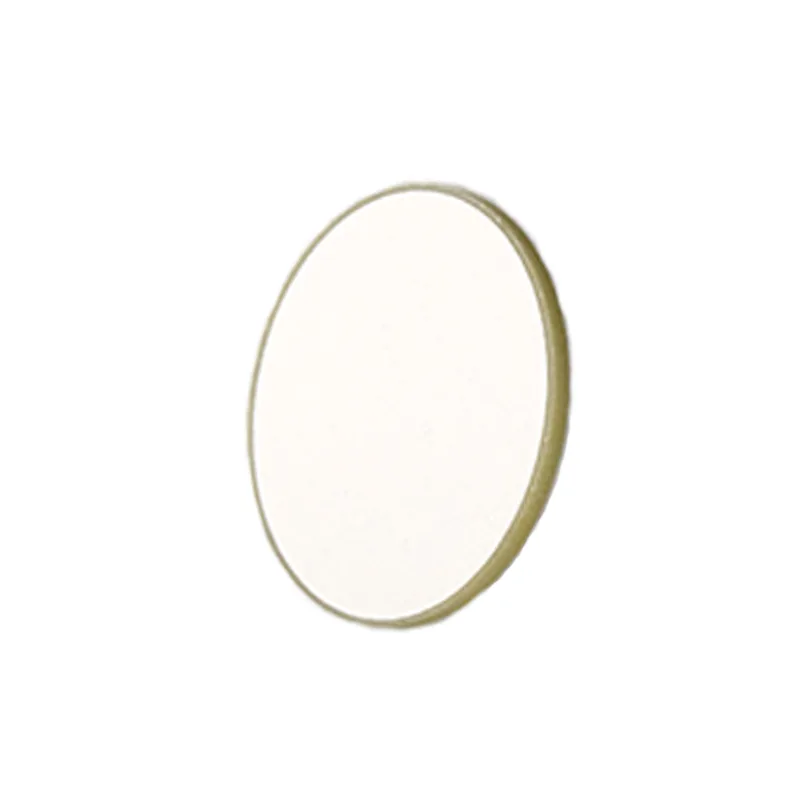

2MHz Piezoelectric Ceramic Disc

2MHz piezoelectric ceramic disc is 6 × 1mm.

Piezoelectric ceramic disc. Silver electrodes being one on each side (S configuration). Thickness mode vibration application.

Model

HCPP5D6T1

Material

Piezo Material: P5

Dimensions

6mm diameter x 1mm thickness

Specifications

Resonant frequency fr: 2 MHz ±5%

Electromechanical coupling coefficient Kp: ≥0.6

Tangent δ: ＜2%

Static capacitance Cs: 460pF ±15% @1kHz

Test Conditions

23±3 °C 40~70% R.H.

Measurement Notes

fr, Zm, Kp => Thickness mode vibration application

Cs => LCR meter at 1KHz 1Vrms

Applications

2MHz piezoelectric ceramic disc suitable for ultrasonic sensors.
