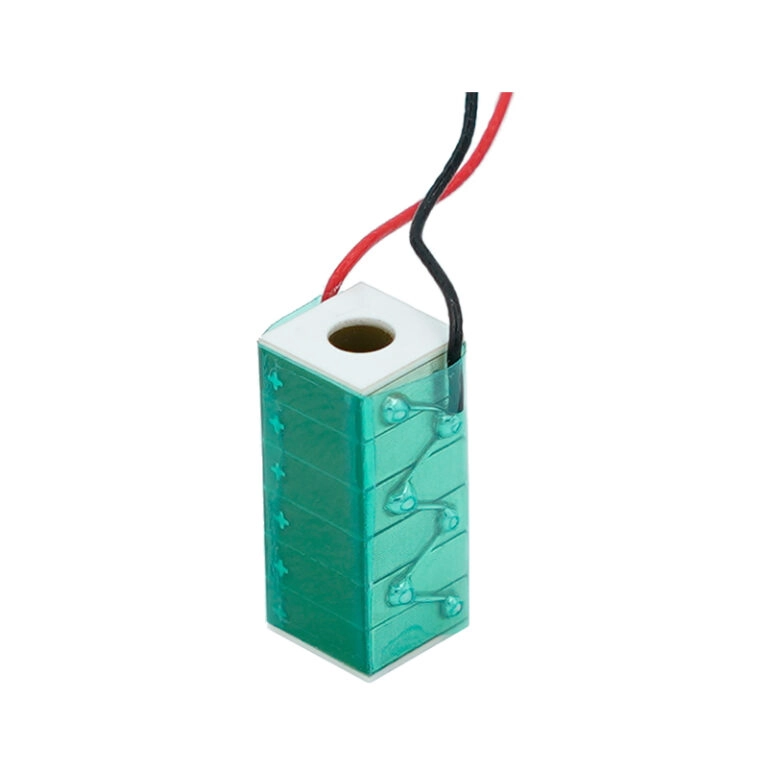

40µm Hole-Type Piezo Stack Actuator 5x5x50mm

2026-01-13 Multilayer Piezo Elements

multi-layer Piezoelectric Stack Actuators

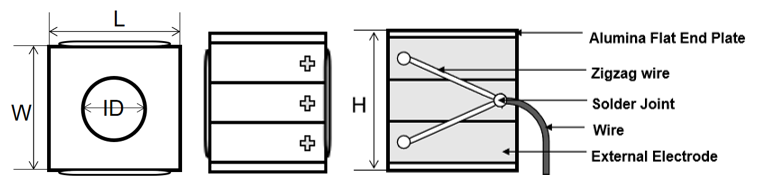

Piezoelectric Stack Actuators Rectangle with hole

26Khz Piezoelectric Stack Actuators Rectangle hole

Product Description

26Khz Piezoelectric Stack Actuators Rectangle hole is made up of several piezoelectric ceramic sheets and bonded with epoxy resin. These stacks can obtain a free travel significantly larger than that of a single piezoelectric ceramic chip, and maintain the response time of sub millisecond and lower driving voltage range.

26Khz Piezoelectric Stack Actuators Rectangle with hole other thickness customization.

Specifications

Stack: HCSRH55T50

Drive Voltage: 150V

Dimensions: 5×5×50mm

Capacitance: 2.7uF ± 15%

Resonant Frequency: 26Khz

Displacement: 40µm ± 15%

Blocking Force: 20N

Scope of Customization

Dimensions/mm: 5×5(Ø2)，7×7(Ø3)

Drive Voltage/V: 0~150

Displacement/μm: 7~40

Characteristic: Sub millisecond response, Submicron resolution, Square & Round & medium hole, Low power consumption, anti magnetic interference, It can be used in vacuum environment, Size / voltage can be customized.
