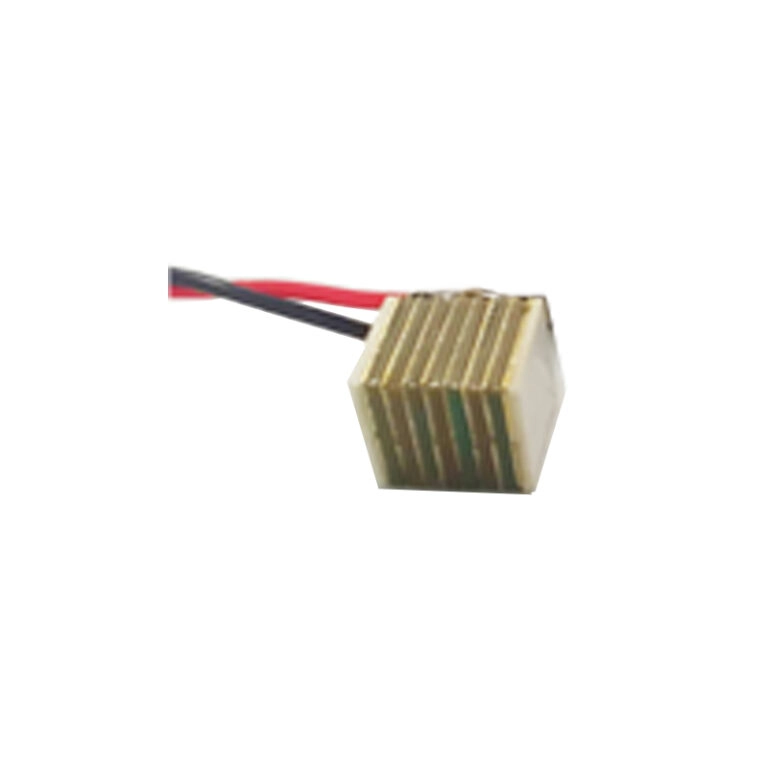

7µm Shear Piezo Stack Actuator 5x5x6mm

2100Khz Shear Piezoelectric Actuators

Product Description

By superimposing the shear stack and the z-axis moving piezoelectric ceramics, the X, X/Y multi axis moving stack can be formed.

2100Khz Shear Piezoelectric Actuators can provide lateral displacement, and a plurality of shear sheets are bonded with epoxy resin and copper foil to form a stack, which can provide greater lateral displacement.

Specifications

X-Axis

Shear Stack: HCSR55T6

Drive Voltage: ±200V

Dimensions: 5×5×6mm

Capacitance: X:10 nF±15%

Resonant Frequency: 2100Khz

Displacement: 7µm ± 15%

Blocking Force: 50N

X/Y-Axis

Shear Stack: HCSR55T12

Drive Voltage: ±200V

Dimensions: 5×5×12mm

Capacitance: X/Y:10 nF±15%

Resonant Frequency: 2100Khz

Displacement: 7µm ± 15%

Blocking Force: 50N
