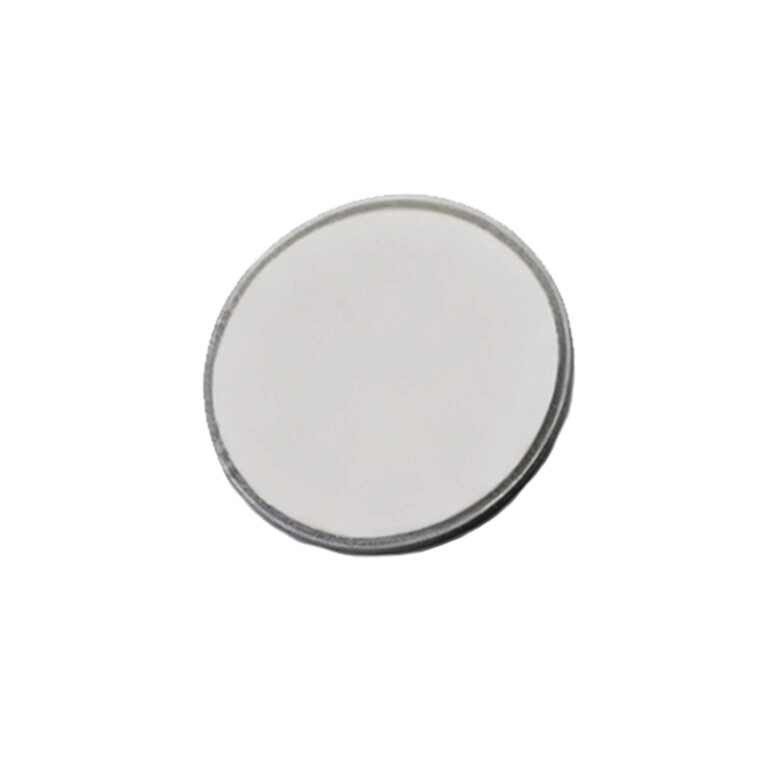

200kHz Piezoelectric Disc 10x1mm

200kHz Piezoelectric Ceramic Disc

200kHz Piezoelectric ceramic disc is 10×1mm, Piezo Electric Ceramic Disc Transducer. Single electrodes on each side (S configuration). Radial mode vibration application.

Model

HCPP5D10T1

Material

Piezo Material: P5

Dimensions

10mm diameter x1mm thickness

Specifications

Resonant frequency fr: 199KHz±5%

Electromechanical coupling coefficient Kp: ≥73%

Resonant impedance Zm: ≤19 Ω

Dielectric Loss Tan∂: =1.3%

Static capacitance Cs: 1400pF±20%@1kHz

Test Condition

23±3 °C 40~70% R.H.

fr, Zm, Kp => Radial mode vibration application

Cs => LCR meter at 1KHz 1Vrms

Applications

Piezo transducer vibration, matter dispersion, sonar transducer, Ultrasonic Sensor, wall thickness sensor, material stress sensor.
