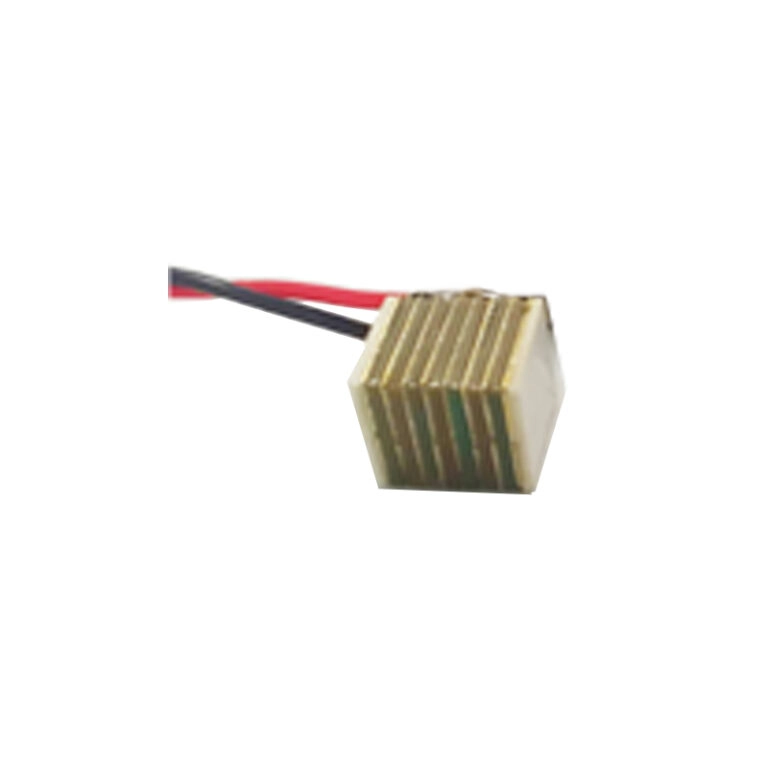

1.3µm Mini Shear Piezo Stack Actuator 5x5x0.5mm

1800Khz Shear Piezoelectric Actuators

Product Description

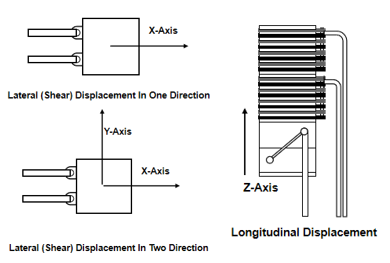

By superimposing the shear stack and the z-axis moving piezoelectric ceramics, the XY / XZ / YZ / XYZ multi axis moving stack can be formed.

1800Khz Shear Piezoelectric Actuators can provide lateral displacement, and a plurality of shear sheets are bonded with epoxy resin and copper foil to form a stack, which can provide greater lateral displacement.

Specifications

Shear Stack: HCSR55T005

Drive Voltage: ±200V

Dimensions: 5×5×0.5mm

Capacitance: 1.7nF±15%

Resonant Frequency: 1800Khz

Displacement: 1.3µm ± 15%

Blocking Force: 50N
