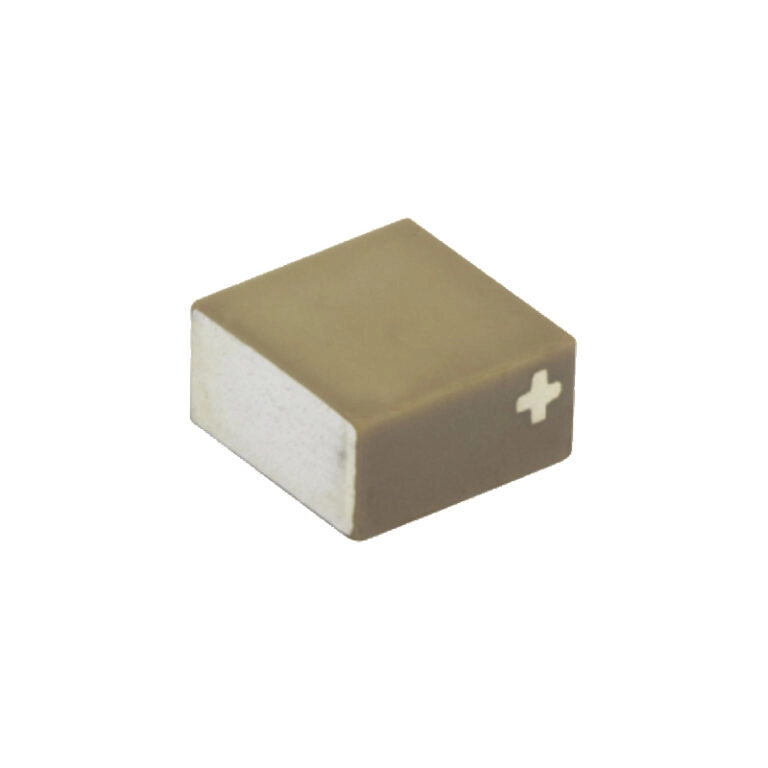

2.1µm High Force Piezo Stack Actuator 10x10x2mm

165Khz Piezoelectric Chips Actuators Square

The displacement is 1 ‰ of its thickness, the standard thickness is 2mm / 3mm, and the flatness is less than ± 5 μm.

Chip Model

HCCS1010T2

Specifications

Drive Voltage: 150V

Dimensions: 10×10×2mm

Capacitance: 800nF±15%

Resonant Frequency: 165Khz

Displacement: 2.1µm±15%

Blocking Force: 4000N

Scope of Customization

Dimensions/mm: 0.9×0.9~14×14

Drive Voltage/V: 0~75/100/120/150

Displacement/μm: 0.7~3.6

Characteristics

Sub-Micron Resolution

Submicron resolution

Square & Round & medium hole

Low power consumption, anti magnetic interference

It can be used in vacuum environment

Size / voltage can be customized.

Additional Information

165Khz Piezoelectric Chips Actuators square support other thickness customization.
