140kHz Piezoelectric Stack 5x5x9mm for Precision Positioning

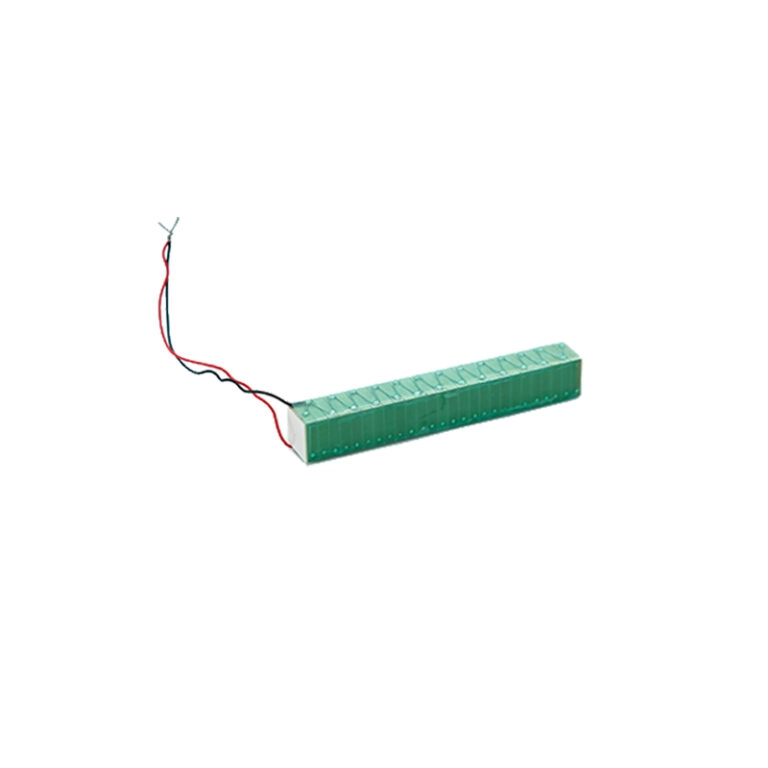

140Khz Rectangle Piezoelectric Stack Actuators

Product Description

140Khz Rectangle Piezoelectric Stack Actuators is made up of several piezoelectric ceramic sheets and bonded with epoxy resin. These stacks can obtain a free travel significantly larger than that of a single piezoelectric ceramic chip, and maintain the response time of sub millisecond and lower driving voltage range.

140Khz Rectangle Piezoelectric Stack Actuators other thickness customization.

Specifications

Stack: HCSR55T9

Drive Voltage: 150V

Dimensions: 5×5×9mm

Capacitance: 650nF±15%

Resonant Frequency: 140Khz

Displacement: 9.5µm ± 15%

Blocking Force: 1000N

Scope of Customization

Dimensions/mm: 0.9×0.9~14×14

Drive Voltage/V: 0~75/100/120/150

Displacement/μm: 5~100

Characteristic: Sub millisecond response, Submicron resolution, Square & Round & medium hole, Low power consumption, anti magnetic interference, It can be used in vacuum environment, Size / voltage can be customized.
