10MHz Piezoelectric Disc 10×0.2mm for Ultrasonic Sensors

10MHz Piezoelectric Ceramic Disc

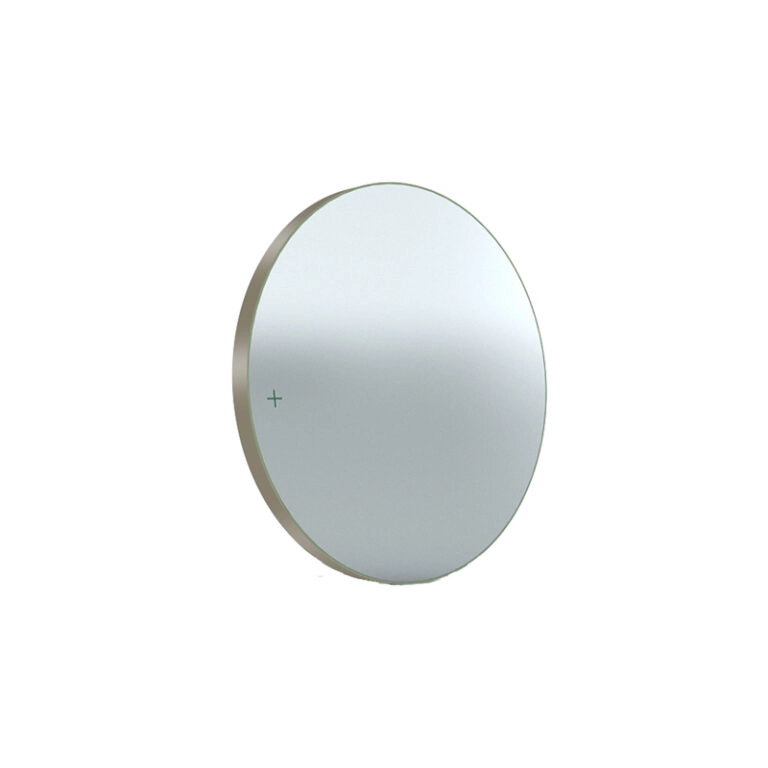

10MHz piezoelectric ceramic disc, 10 × 0.2mm, piezoelectric ceramic disc. Silver electrodes on each side (S configuration). Thickness vibration mode vibration.

Model

HCPP4D10T002

Material

Piezo Material: P4

Dimensions

10mm dia. x 0.2mm thickness

Specifications

Resonant frequency fr: 10.1 MHz ± 7%

Electromechanical coupling coefficient Kt: ≥50%

Resonant impedance Zr: ≤0.08 Ω

Static capacitance Cs: 4000pF ±25% @ 60Hz/1V

Dielectric loss: ≤0.28%

Test Conditions

23±3 °C, 40~70% R.H.

Measurement Notes

fr, Zm, Kp => Thickness vibration mode

Cs => LCR meter at 1KHz 1Vrms

Applications

Applied to ultrasonic sensors and vibration sensors.
