1.5MHz Piezoelectric Plate 20x15x1.4mm for Precision Mechanics

2026-07-11 Piezoelectric Ceramic Plates

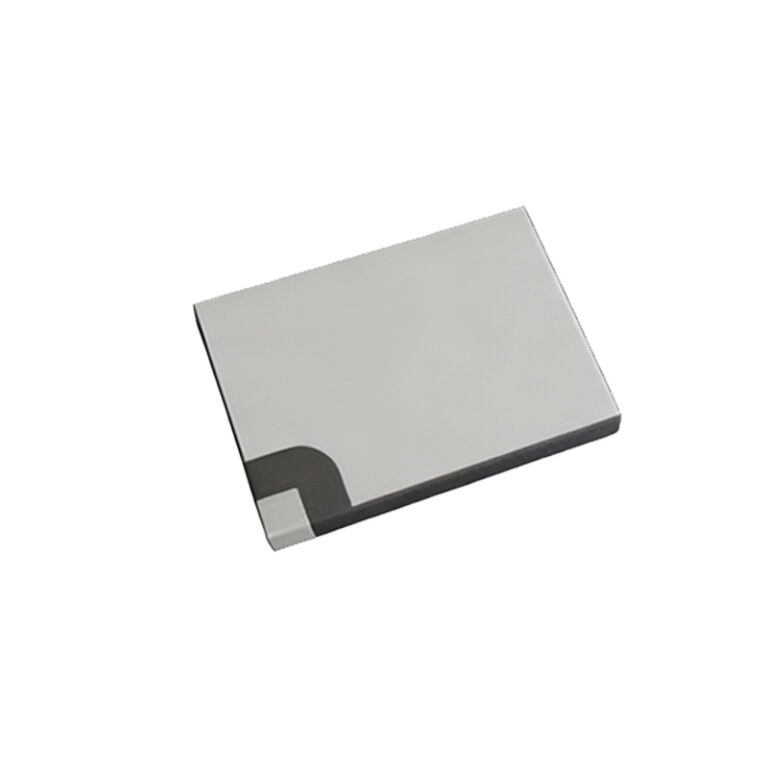

1.5MHz Piezoelectric Plate 20x15x1.4mm for Precision Mechanics product image

Product Overview

1.5MHz Piezoelectric Plate 20x15x1.4mm for Precision Mechanics belongs to the Piezoelectric Ceramic Plates category from Hurricane PZT and is prepared for technical evaluation, sample validation and OEM/ODM product development.

For reliable selection, the product should be reviewed together with the required frequency, geometry, electrode design, polarization direction, drive conditions, mounting space and operating environment.

Key Technical Information

  • Resonant frequency: 1.5MHz
  • Dimensions: 20x15x1.4mm
  • PZT material: PZT4
  • Capacitance: 2490pF ±10%
  • Resonant impedance: ≤0.91 Ω

Typical Applications

  • Precision Mechanics

Customization and Supply Support

For custom projects, we can support dimensional adjustment, PZT material selection, electrode configuration, poling direction, lead connection, sample development and batch production planning.
