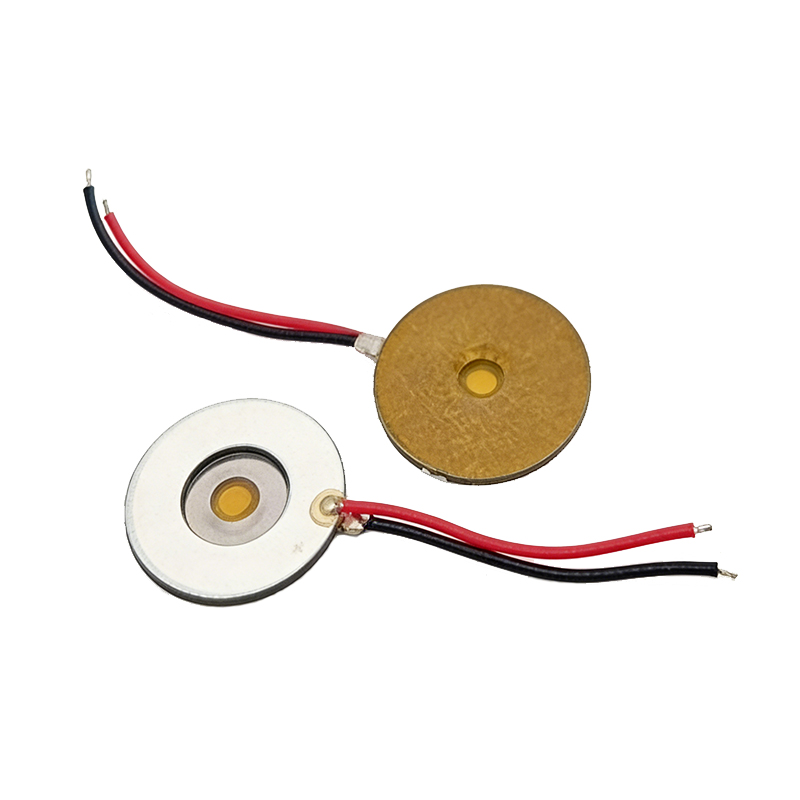

Piezo Medical Atomizer parameter：

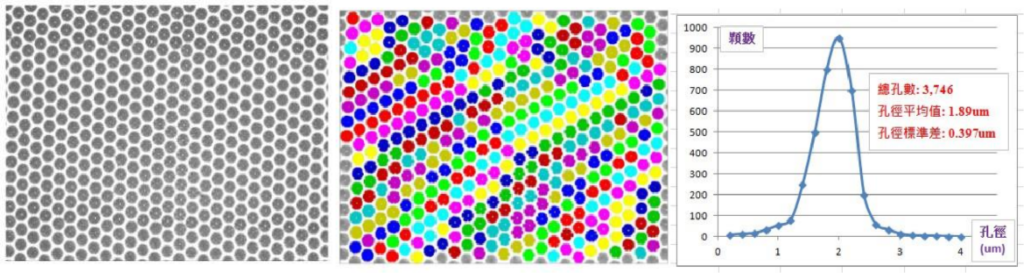

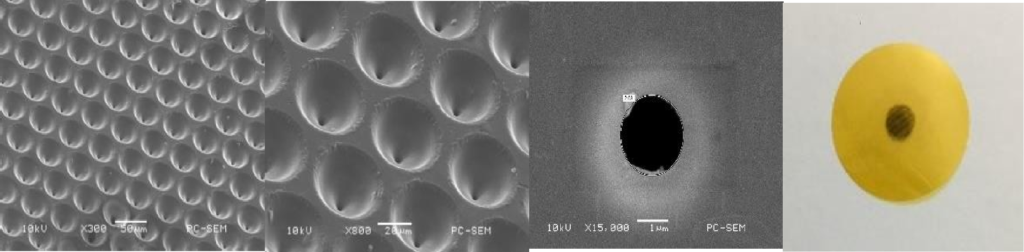

Polyimide film (PI film) is a kind of polymer material with excellent properties, which is widely used in the fields of electronics, machinery, medicine, biology and so on. PI film with innovative excimer laser processing technology is used to produce high-quality medical screen. Drilling range: 3mm in diameter, 2800 holes (the hole diameter can be customized).
The atomized tablets have passed four biocompatibility tests, including the cytotoxicity test of Taimei, and supported many customers to pass the FDA verification.
Stainless steel foil: SUS316L
Nozzle plate: polyimide (DuPont 100HN)
Ceramic material: PZT 4
Ceramic：ID(mm)7.8±0.25，OD(mm)16±0.25
Silver electrode：ID(mm)8.8±，OD(mm)0.515±0.5
Insualtion Glaze(screen dimension)：ID(mm)7.3+0/-0.5，OD(mm)16.5+0.5/-0.0
| Description | Unit | Min | Type | Max |
| Capacitance | nF | 2.4 | 2.8 | 3.2 |
| Resonant Frequency | kHz | 96 | 101 | 106 |
| Impedance | Ω | 100 | ||
| Vp-p | V | 30 | 120 | |
| Atomization volume (1W) | ml/min | 0.3 | 0.45 | 0.6 |
| Number of Holes | 2500 | 2650 | 2800 | |
| Average Hole Diameter | μm | 1.5 | 2 | 2.5 |
| Total Diameter | mm | 15.75 | 16 | 16.25 |

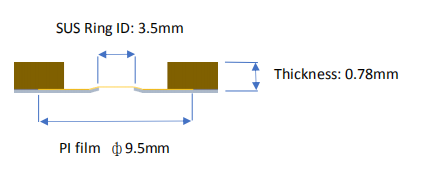

| Total Thickness | mm | 0.76 | 0.78 | 0.8 |
| Total Wire lenght | mm | 28 | ||
| Cable O.D. | mm | 0.6 | 0.7 | 0.8 |
Piezo Medical Atomizer Note:
1. Protection glue should be applied on soldering.
2. Wire stripping side should apply tin coating.
3. Inspection report for piercing diameter per batch.
