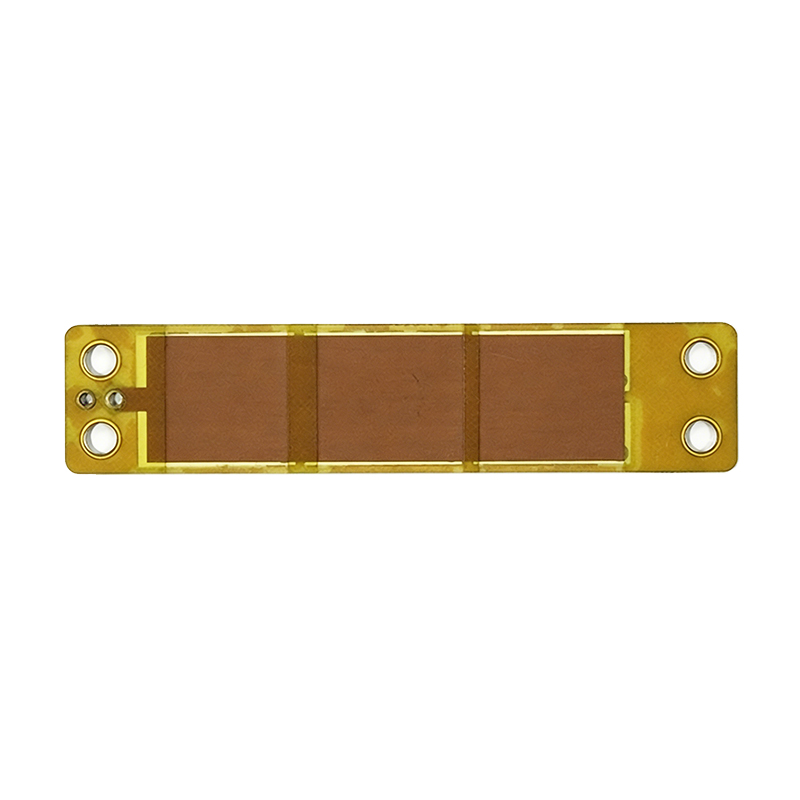

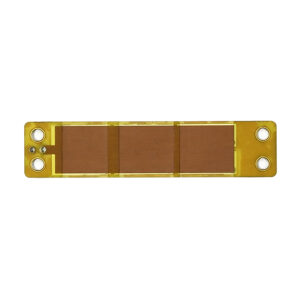

Flexible piezoelectric device is composed of multiple layers of flexible piezoelectric materials. When the device is used as an actuator, it not only has low driving voltage, but also can withstand large impact and harsh oil pollution environment.
As an energy acquisition device, it can bear moredisplacement than the traditional bimorph, so it can generate more electricity. Through the array design of multilayer piezoelectric ceramics, the device can be designed into any shape and meet various size requirements. Each flexible multi-layer electrical device can be designed according to customer requirements.
Dimension：94×21×0.4mm
Resonant frequency：4Hz
Displacement：6mm
Drive Voltag：6Vpp
Rated current：3mApp
Resistance：1-5KΩ
flexible piezoelectric device Characteristic：
- Size / voltage can be customized
- The bending radius can be as small as 6.5cm
- Low pressure drive
- Anti magnetic interference
- It can be used in water, oil and other environments
