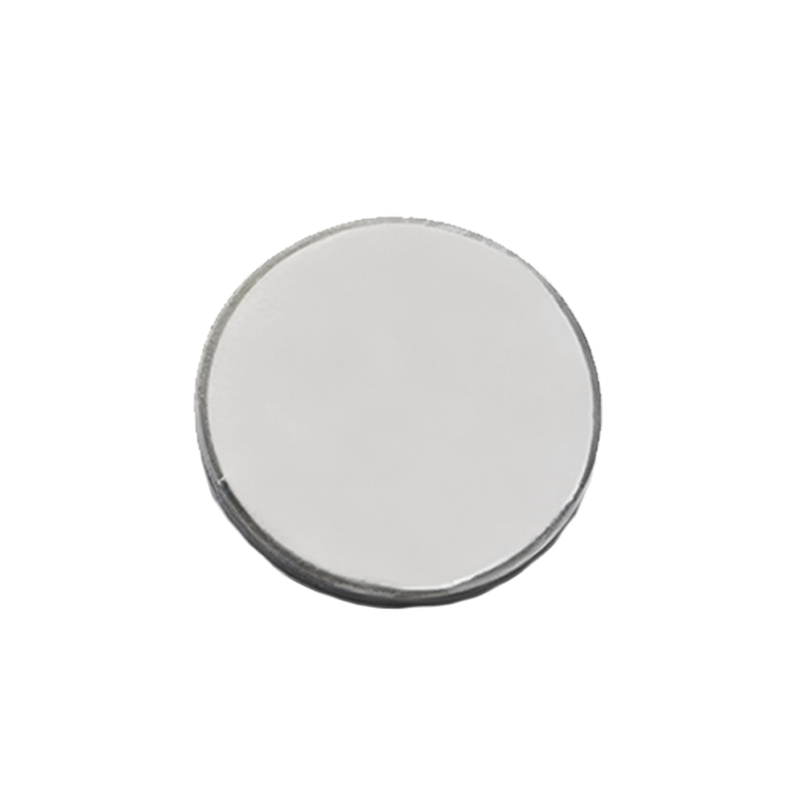

8Mhz Piezoelectric ceramic disc is 10×0.28mm，Piezoelectric Ceramic disc. Silver electrodes being one on each side (S configuration). Thickness mode vibration application.
- model：HCPP5D10T0028
- Piezo Material:P5
- Dimensions: 10mm dia. x 0.28mm thickness
- Resonant frequency fr: 8MHz ± 5%
- Electromechanical coupling coefficient Kt:≥46%
- Resonant impedance Zr: ≤0.26 Ω
- Static capacitance Cs: 4500pF±15%@ 60Hz/1V
- Dielectric Loss tg δ: 1.1%
- Test Condition: 23±3 °C 40~70% R.H.
- fr, Zm, Kp => Thickness mode vibration application
- Cs => LCR meter at 1KHz 1Vrms
8Mhz Piezoelectric ceramic disc Applications: Piezoelectric Disc Sensor, Pressure sensor, and others.
