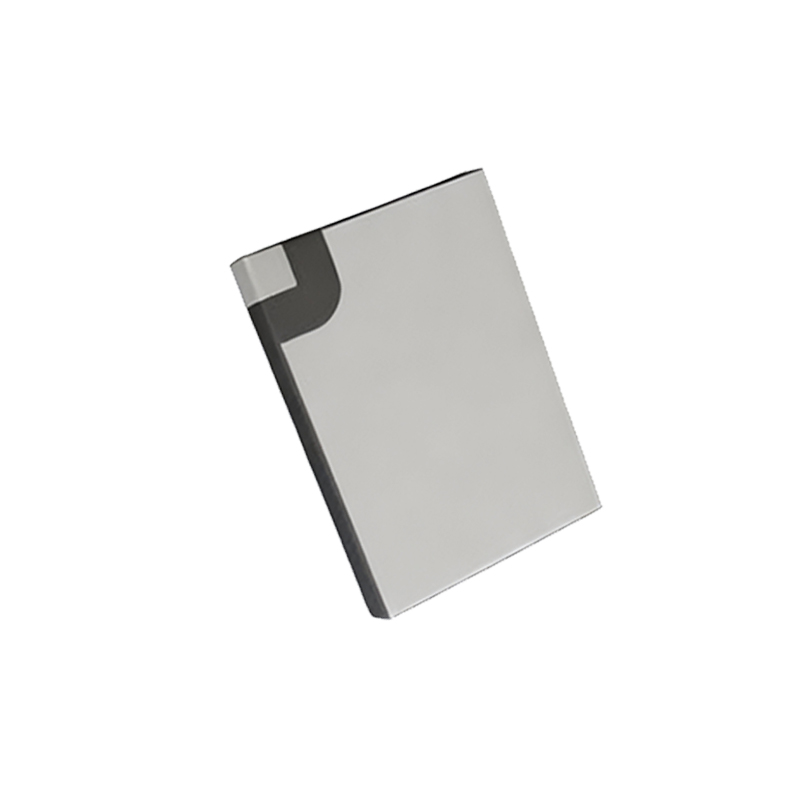

710Khz Piezoelectric Ceramic Plate is20×15×3mm， ideal for electricity generation and pressure sensor. Silver electrodes being on the same side (R configuration).
Thickness mode vibration application
- model：HCPP4P2015T3
- Piezo Material: PZT-4
- Dimensions: 20x15x3mm
- Resonant frequency fr: 710 KHz ± 5%
- Electromechanical coupling coefficient Kt: ≥42%
- Resonant impedance Zm: ≤4.7 Ω
- Static capacitance Cs: 1307pF±10%
- Dielectric Loss Tan∂: 0.29
- Test Condition: 23±3 °C 40~70% R.H.
- fr, Zm, Kp => Thickness mode vibration application
- Cs => LCR meter at 1KHz 1Vrms
710Khz Piezoelectric Ceramic Plate Applications: Precision mechanics and mechanical engineering. Life sciences, Medicine and Biology. Pneumatic & Hydraulic valves.
