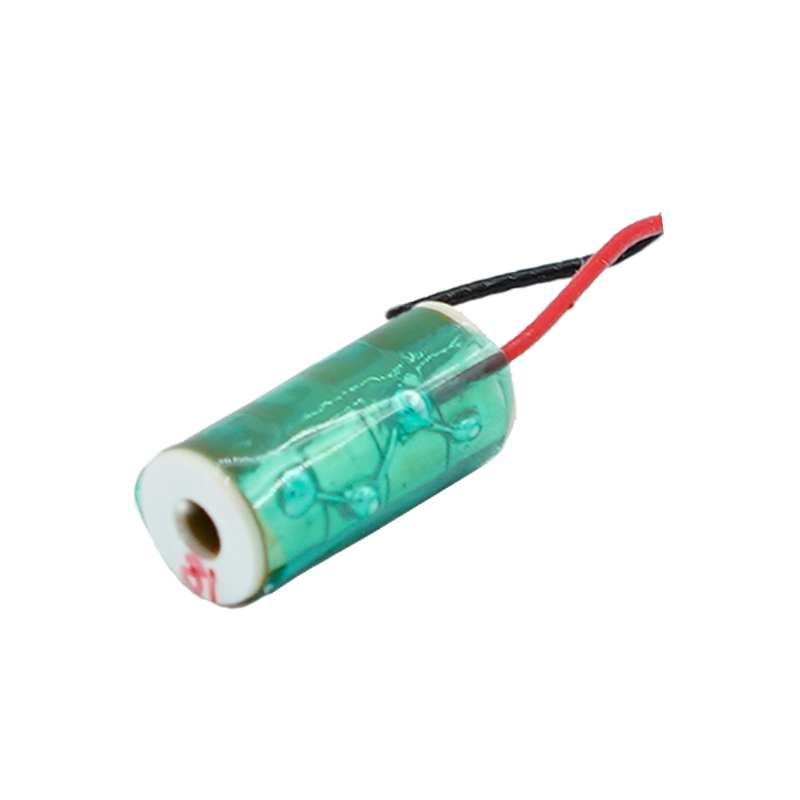

70Khz Rectangle Piezoelectric Stack Cylinder is made up of several piezoelectric ceramic sheets and bonded with epoxy resin. These stacks can obtain a free travel significantly larger than that of a single piezoelectric ceramic chip, and maintain the response time of sub millisecond and lower driving voltage range.
Stack：HCSC159T1305
Drive Voltage：150V
Dimensions：15×9×13.5mm
Capacitance：8400nF±15%
Resonant Frequency：70Khz
Displacement：15µm±15%
Blocking Force：4250N
scope of customization

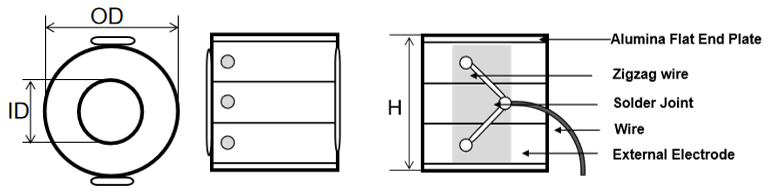

Dimensions/mm：Ø8.3-Ø3.0，Ø6.0-Ø2.5
Drive Voltage/V：0~150
Displacement/μm：9
Characteristic：Sub millisecond response,Submicron resolution,Square & Round & medium hole,Low power consumption, anti magnetic interference,It can be used in vacuum environment,Size / voltage can be customized.
