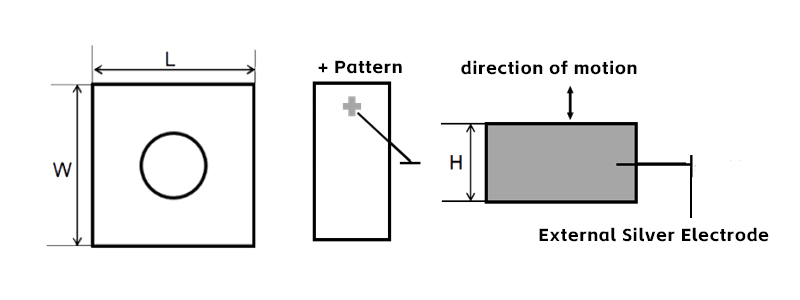

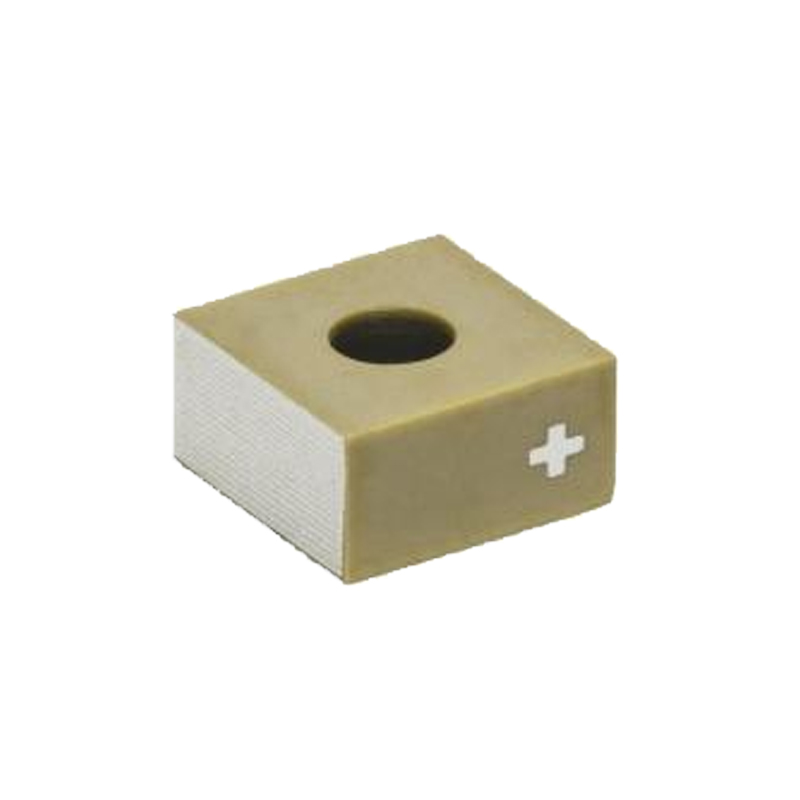

610Khz Piezoelectric Chips square with hole The displacement is 1 ‰ of its thickness, the standard thickness is 2mm / 3mm, and the flatness is less than ± 5 μ m.
Chips：HCCSH55T2
Drive Voltage：150V
Dimensions：5×5×2mm
Capacitance：160nF±15%
Resonant Frequency：610Khz
Displacement：1.8µm±15%
Blocking Force：800N
scope of customization
Dimensions/mm：5×5（Φ2）7×7（Φ3）
Drive Voltage/V：0~150
Displacement/μm：3
Characteristic：Sub-Micron Resolution、Submicron resolution、Square & Round & medium hole、Low power consumption, anti magnetic interference、It can be used in vacuum environment、Size / voltage can be customized.
610Khz Piezoelectric Chips square with hole support other thickness customization.
