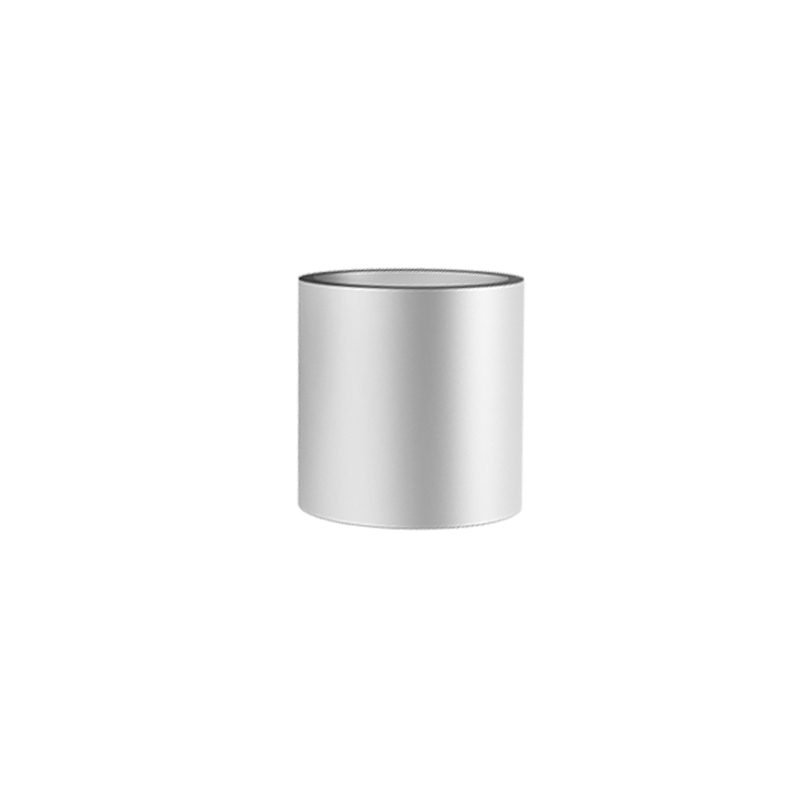

600Khz Piezoelectric ceramic tube is 2.5×1.3×3mm，Mini Piezoelectric Ceramic Cylinder. Radial mode vibration
- Model：HCPP5T205103T3
- Piezo Material: PZT-5J
- Dimensions: OD 2.5±0.2 x ID1.3±0.2 x Th 3±0.2mm
- Resonant frequency fr: 600 KHz ± 5%
- Electromechanical coupling coefficient K31: ≥ 0.34
- Dielectric Loss tg δ: ≤2%
- Resonant impedance Zm: ≤100
- Static capacitance Cs: 500pF±15%
- Piezoelectric Strain Constant (d33) ×10-12 C/N : ≥450
- Test Condition: 25°C 40~70% R.H.
- fr, Zm, Kr => Radial mode vibration
- Cs tanδ => LCR meter at 1KHz 1Vrms
600Khz Piezoelectric ceramic tube Piezo ceramic cylinder small diameter for uses such as underwater communication, Ultrasonic Sensor, Vibration Sensor.
