540Khz Piezoelectric Chips Actuators square The displacement is 1 ‰ of its thickness, the standard thickness is 2mm / 3mm, and the flatness is less than ± 5 μ m.
Chips：HCCS22T2
Drive Voltage：45V

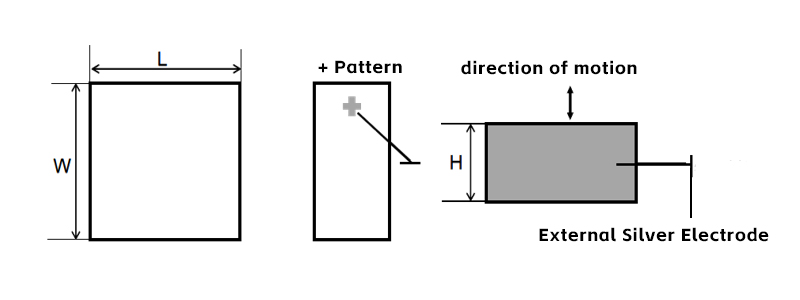

Dimensions：2×2×2mm
Capacitance：215 nF ± 15%
Resonant Frequency：540Khz
Displacement：2.0 µm ± 15%
Blocking Force：160N
scope of customization
Dimensions/mm：0.9×0.9~14×14
Drive Voltage/V：0~75/100/120/150
Displacement/μm：0.7~3.6
Characteristic：Sub-Micron Resolution、Submicron resolution、Square & Round & medium hole、Low power consumption, anti magnetic interference、It can be used in vacuum environment、Size / voltage can be customized.
540Khz Piezoelectric Chips Actuators square support other thickness customization.
