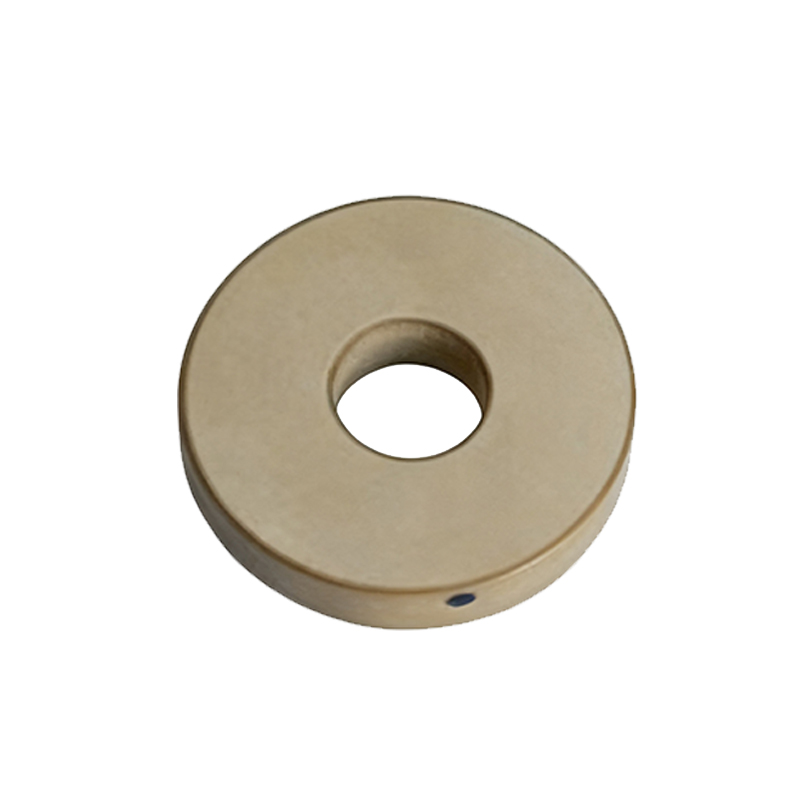

410Khz Piezoelectric ceramic ring is 15×6.5×5mm，Piezoelectric Ceramic Ring with Silver electrodes on both sides..
- Model：HCPP8R15605T5
- Piezo Material:PZT-8
- Dimensions: 15 x 6.5 x 5mm
- Resonant frequency fr: 410 KHzz ± 2%
- Electromechanical coupling coefficient Keff: ≥58%
- Resonant Mode: Thickness mode vibration application
- Resonant impedance Zm: ≤15 Ω
- Static capacitance Cs: 0.17nF±20%
- Test Condition: 25±3 °C 40~70% R.H.
- fr, Zm, Kp => Thickness mode vibration application
- Cs => LCR meter at 1KHz 1Vrms
410Khz Piezoelectric ceramic ring Applications: Bolt-clamped ultrasonic transducer, Ultrasonic Sensor, Vibration Sensor, Pressure sensor, Vibration generation, Biodiesel mixing transducer.
