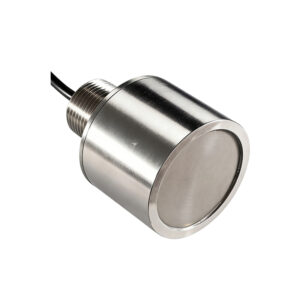

40Khz Ultrasonic Depth Sensor – Measurement of river depth using ultrasonic waves.
Technical parameters:
| Model | Ultrasonic Depth Sensor HCTD0040KA |
|---|---|
| Working frequency(fr) | 40 ± 2KHZ |
| Bandwidth | 40khz ± 10% |
| Material | PZT-4, PZT-8 |
| Beam width(-3dB) | 50° |
| Parallel impedance(in water)(Ω) | 2k ± 30% |
| Static capacitance(pf) | 2700 ± 15% |
| Power | 50~200W |
