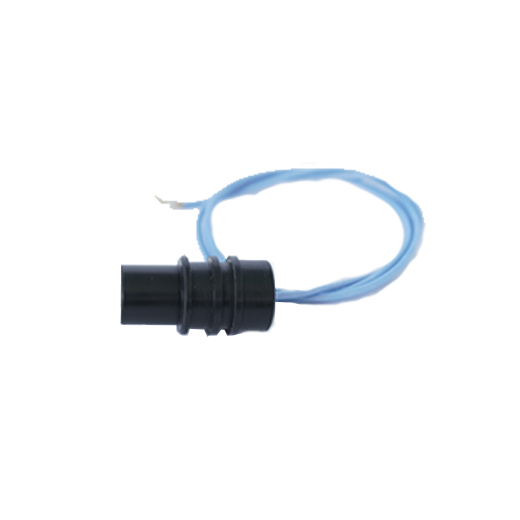

3Mhz Ultrasound Liver Stiffness Probe Model：HCTUD3000KA-LS
Sort：Detection type
center frequency （-6dB）：2.5/3/5Mhz±0.3MHz
effective diameter：Ф5mm、Ф7mm
Transmit – Receive Sensitivity：≥-32dB
Echo Pulse Width (-20dB)：≤800ns
Relative Bandwidth (-6dB)：≥60%
Static Capacitance：2200±15%
Probe Focal Distance：5cm
Housing Pressure Withstand Test： IPX7 4000V
Application：It is used in medical liver stiffness testers and has characteristics such as high sensitivity and high resolution.
Biocompatibility report is available for the contact surface.
The above tests were carried out at 25°C
Ultrasound is primarily used for disease diagnosis in the medical field and has become an indispensable diagnostic tool in clinical medicine. It boasts such advantages as no pain or harm to patients, simple operation, clear imaging and high diagnostic accuracy. Additionally, ultrasonic diagnosis can be performed based on different medical principles.
3Mhz Ultrasound Liver Stiffness Probe Accept customization.
