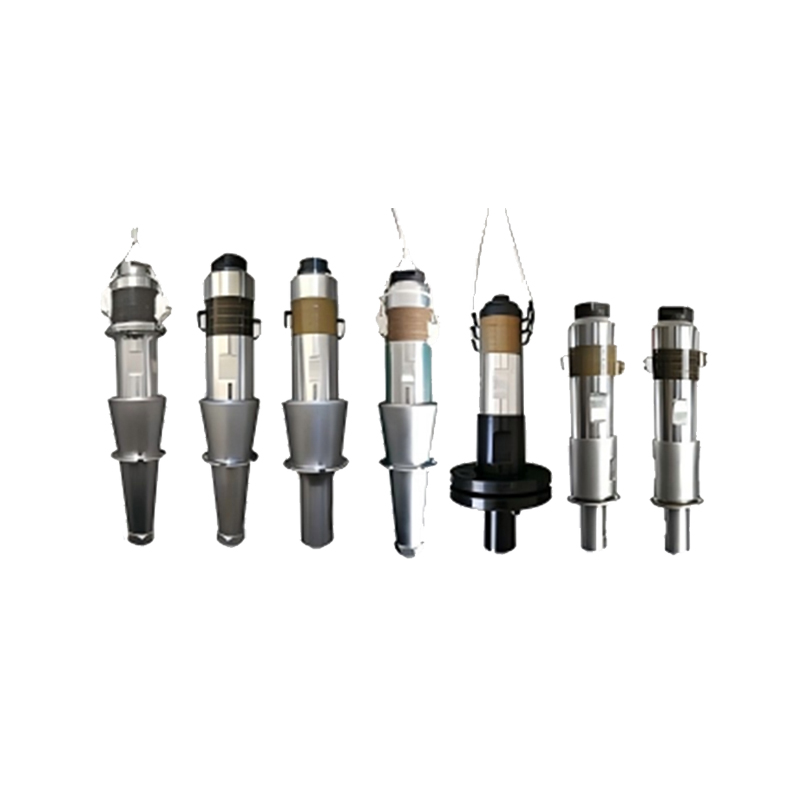

35Khz Ultrasonic Welding Power is 300W.
Type：HCUW35K20P8
Resonant Frequency：35Khz
Capacitance：1900-2100pF
Impedance：≤30Ω
Power：300W
Diameter：Diameter25mm Highly70mm
Ultrasonic welding uses the ultrasonic vibration generated by the transducer to transmit the ultrasonic vibration energy to the welding area through the upper weldment. Due to the large sound resistance at the junction of the two weldments, local high temperature will be generated to melt the welding surface, and the welding work will be completed under the action of contact pressure. Ultrasonic welding can be used to weld the parts that cannot be welded by other welding methods.
35Khz Ultrasonic Welding Support customization.
