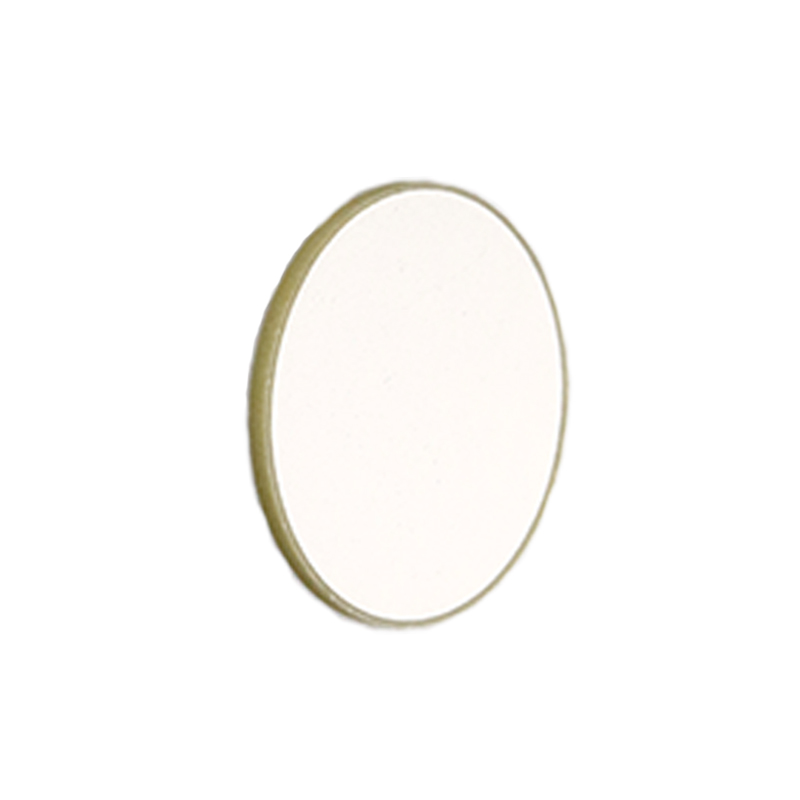

350Khz Piezoelectric ceramic disc is 5×1.5mm
- Piezoelectric Ceramic disc. Silver electrodes being one on each side (S configuration). Radial mode vibration application
- model：HCPP5D5T2
- Piezo Material:P5
- Dimensions: 5mm dia. x 1.5mm thickness
- Resonant frequency fr: 350 KHz ± 15 KHz
- Electromechanical coupling coefficient Kp:≥65%
- Dielectrin loss （tgδ）: ≤0.2 %
- Static capacitance Cs: 267 pF±15%
- Cs => LCR meter at 1KHz 1Vrms
- Test Condition: 23±3 °C 40~70% R.H.
- fr, Zm, Kp => Radial mode vibration application
350Khz Piezoelectric ceramic disc Suitable for applications such as ultrasonic sensors and energy harvesting.
