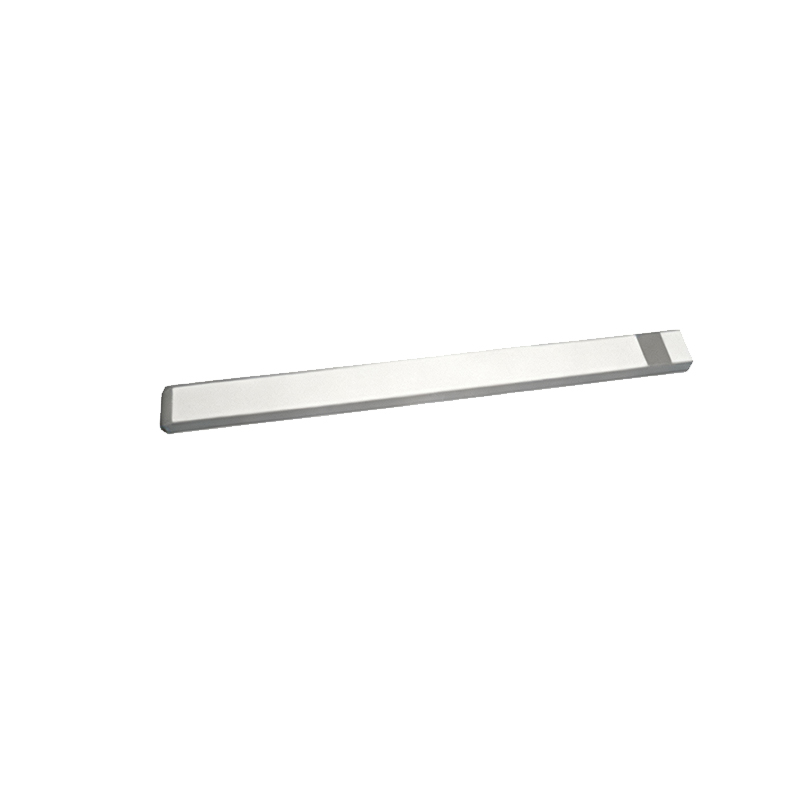

312Khz Piezoelectric Ceramic Plate is 60×5×0.3mm， Both electrodes on one side (R configuration).
| Vibration Mode | Lengthwise | Width |
| Resonant frequency fr | 25 KHz±5% | 312 KHz±5% |
| Resonant impedance Zr | ≤30 Ω | ≤2.0 Ω |
| Electromechanical coupling coefficient K31 | 38% | 56% |
- model：HCPP5P605T003
- Piezo Material: PZT-5H
- Dimensions: 60mm x 5mm x 0.3mm
- Static capacitance Cs: 23 nF±20%
- Dielectric Loss tg δ: 2.1%
- Test Condition: 23±3 °C 40~70% R.H.
- Cs => LCR meter at 1KHz 1Vrms
312Khz Piezoelectric Ceramic Plate Applications: Ultrasonic Sensor, Vibration Sensor, Material stress sensor, Pressure sensor, Vibration generation, Energy/Electricity harvesting, compression sensor and others.
