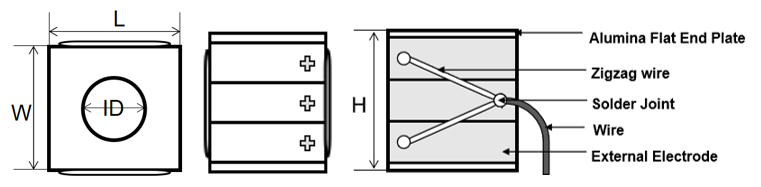

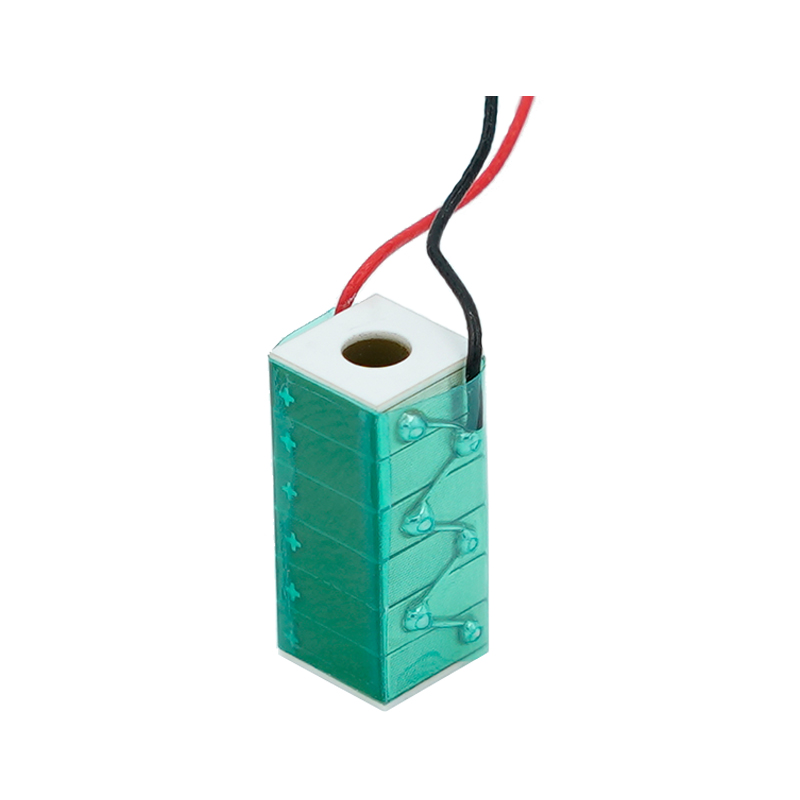

26Khz Piezoelectric Stack Actuators Rectangle hole is made up of several piezoelectric ceramic sheets and bonded with epoxy resin. These stacks can obtain a free travel significantly larger than that of a single piezoelectric ceramic chip, and maintain the response time of sub millisecond and lower driving voltage range.
Stack：HCSRH55T50
Drive Voltage：150V
Dimensions：5×5×50mm
Capacitance：2.7uF ± 15%
Resonant Frequency：26Khz
Displacement：40µm ± 15%
Blocking Force：20N
scope of customization
Dimensions/mm：5×5(Ø2)，7×7(Ø3)
Drive Voltage/V：0~150
Displacement/μm：7~40
Characteristic：Sub millisecond response,Submicron resolution,Square & Round & medium hole,Low power consumption, anti magnetic interference,It can be used in vacuum environment,Size / voltage can be customized.
26Khz Piezoelectric Stack Actuators Rectangle with hole other thickness customization.
