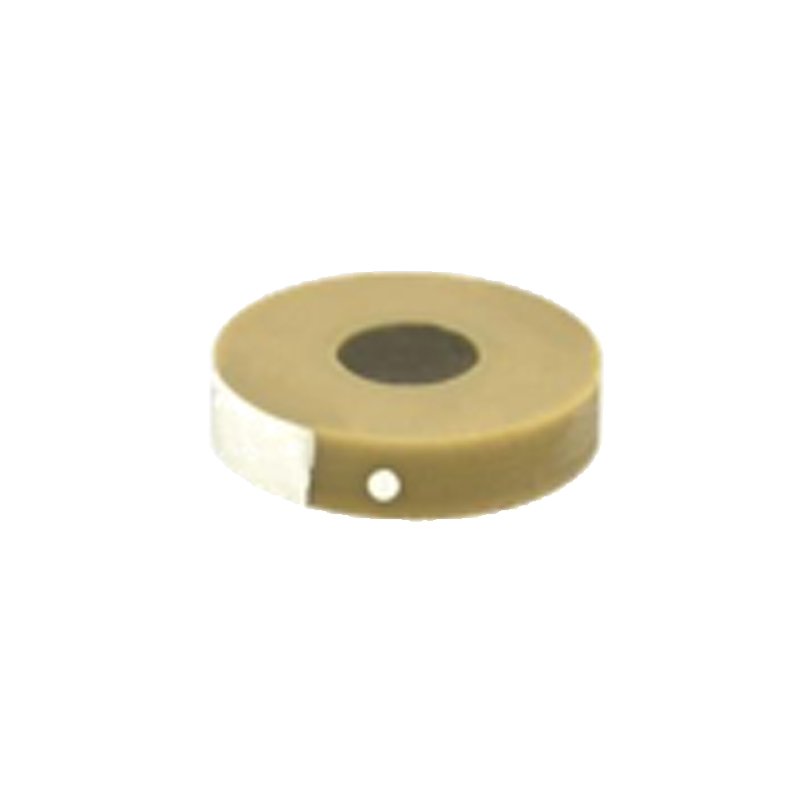

260Khz Piezoelectric Chips Ring The displacement is 1 ‰ of its thickness, the standard thickness is 2mm / 3mm, and the flatness is less than ± 5 μ m.
Chips：HCCR159T302
Drive Voltage：150V
Dimensions：15×9×3.2mm
Capacitance：2200nF±15%
Resonant Frequency：260Khz
Displacement：3.9µm±15%
Blocking Force：4250N
scope of customization

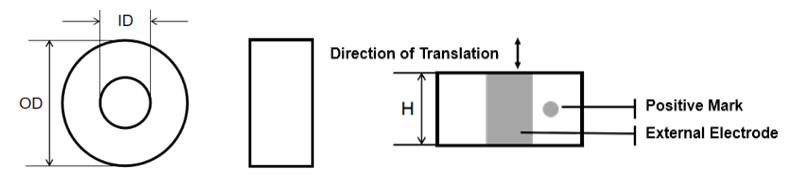

Dimensions/mm：Ø8.3-Ø3.0 Ø6.0-Ø2.5
Drive Voltage/V：0~150
Displacement/μm：2.5
Characteristic：Sub-Micron Resolution、Submicron resolution、Square & Round & medium hole、Low power consumption, anti magnetic interference、It can be used in vacuum environment、Size / voltage can be customized.
260Khz Piezoelectric Chips Ring support other thickness customization.
