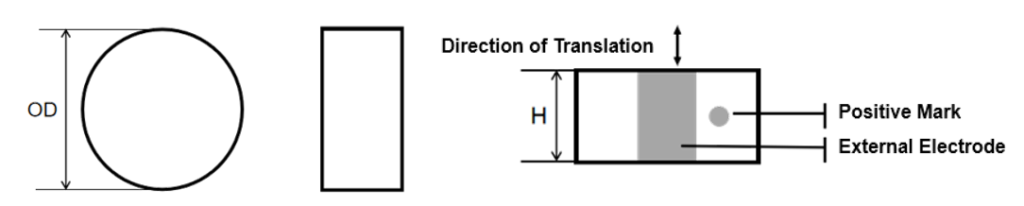

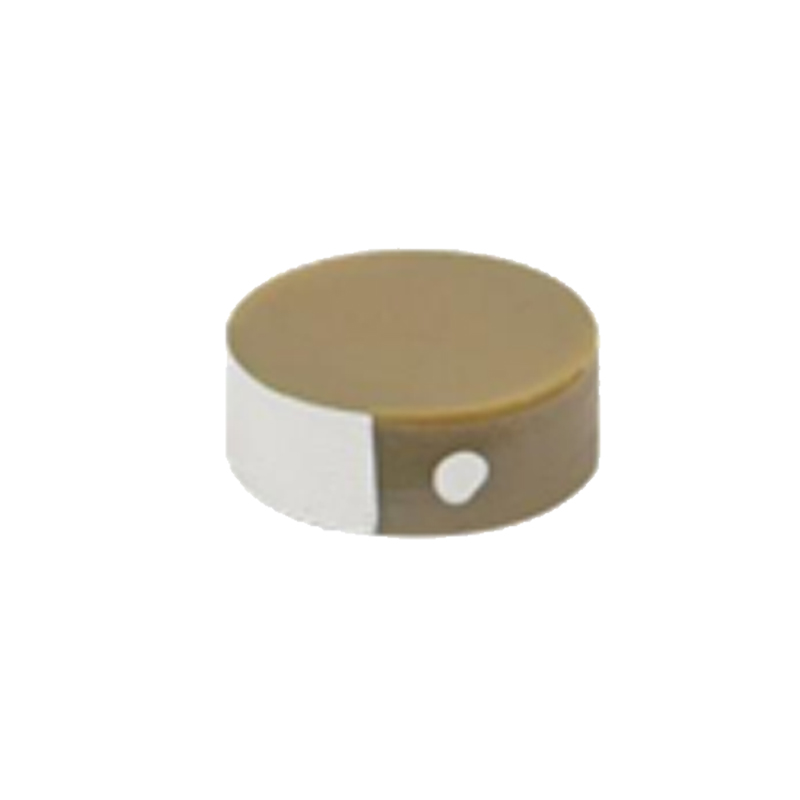

235Khz Piezoelectric Chips Round The displacement is 1 ‰ of its thickness, the standard thickness is 2mm / 3mm, and the flatness is less than ± 5 μ m.
Chips：HCCD803T2
Drive Voltage：200V
Dimensions：8.3×2mm
Capacitance：580nF±15%
Resonant Frequency：235Khz
Displacement：3.3µm±15%
Blocking Force：780N
scope of customization
Dimensions/mm：Φ8.3
Drive Voltage/V：0~150
Displacement/μm：1.8-3
Characteristic：Sub-Micron Resolution、Submicron resolution、Square & Round & medium hole、Low power consumption, anti magnetic interference、It can be used in vacuum environment、Size / voltage can be customized.
235Khz Piezoelectric Chips Round support other thickness customization.
