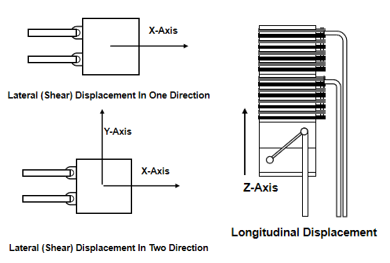

2100Khz Shear Piezoelectric Actuators By superimposing the shear stack and the z-axis moving piezoelectric ceramics, the X, X/Y multi axis moving stack can be formed.
Shear Stack：HCSR55T6
Drive Voltage：±200V
Dimensions：5×5×6mm
Capacitance：X:10 nF±15%
Resonant Frequency：2100Khz
Displacement：7µm ± 15%
Blocking Force：50N
Shear Stack：HCSR55T12
Drive Voltage：±200V
Dimensions：5×5×12mm
Capacitance：X/Y:10 nF±15%
Resonant Frequency：2100Khz
Displacement：7µm ± 15%
Blocking Force：50N

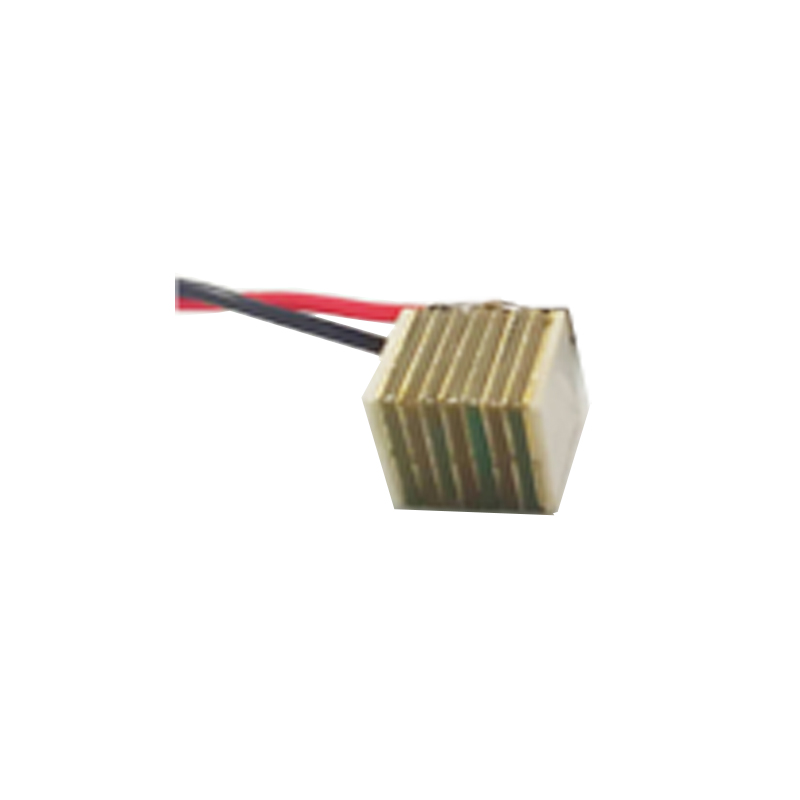

2100Khz Shear Piezoelectric Actuators can provide lateral displacement, and a plurality of shear sheets are bonded with epoxy resin and copper foil to form a stack, which can provide greater lateral displacement.
