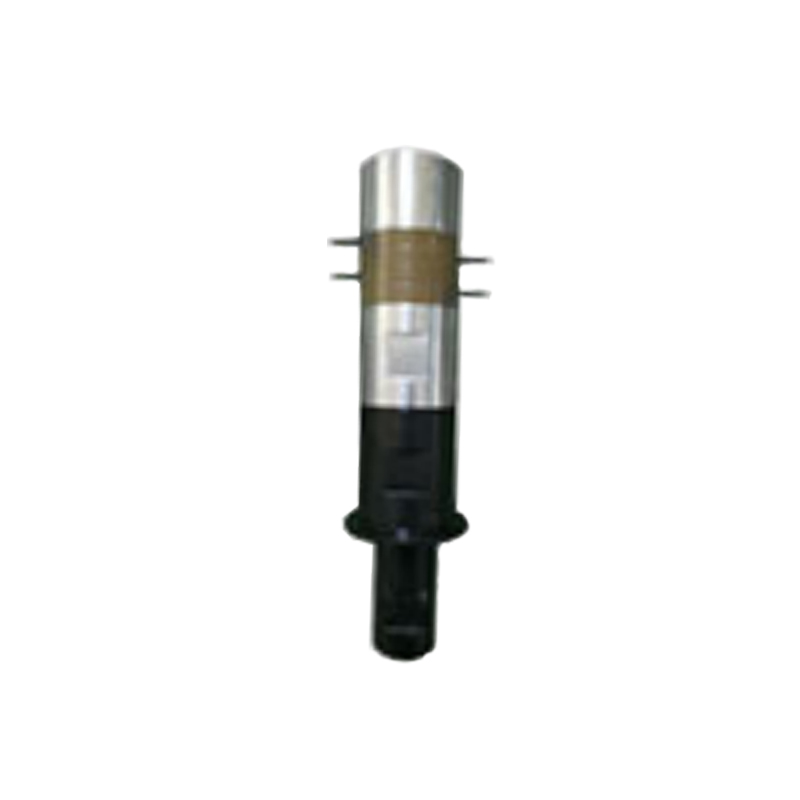

20Khz Ultrasonic Welding Power is 2000W.
Type：HCUW20K50P8
Resonant Frequency：20Khz
Capacitance：17000-18000pF
Impedance：≤10Ω
Power：2000W
Diameter：Diameter50mm Highly112mm
Ultrasonic welding uses the ultrasonic vibration generated by the transducer to transmit the ultrasonic vibration energy to the welding area through the upper weldment. Due to the large sound resistance at the junction of the two weldments, local high temperature will be generated to melt the welding surface, and the welding work will be completed under the action of contact pressure. Ultrasonic welding can be used to weld the parts that cannot be welded by other welding methods.
20Khz Ultrasonic Welding Support customization.
