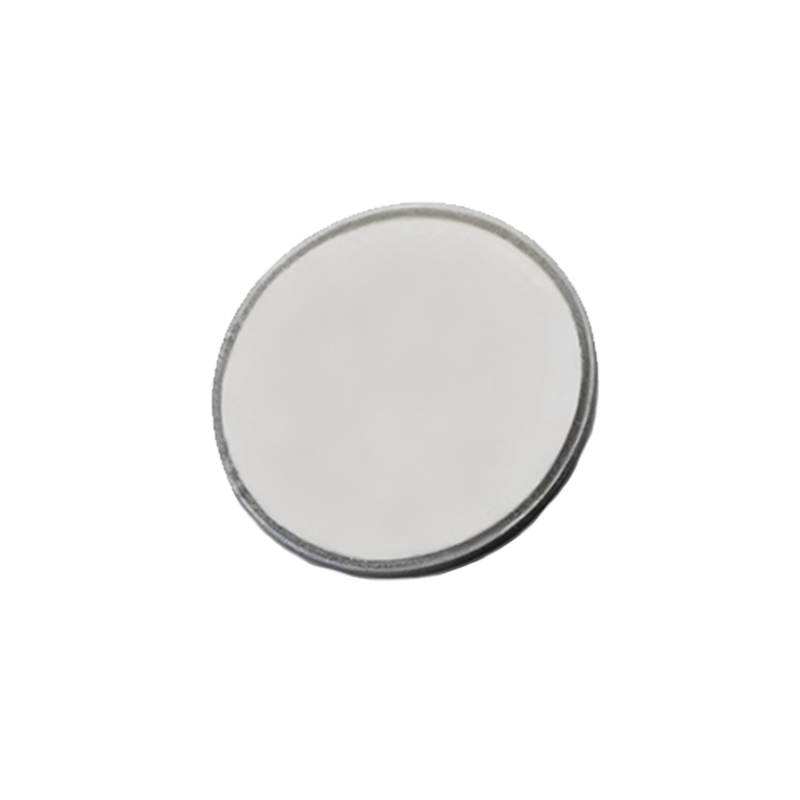

200Khz Piezoelectric ceramic disc is 10×1mm，Piezo Electric Ceramic Disc Transducer. Single electrodes on each side (S configuration) Radial mode vibration application.
- model：HCPP5D10T1
- Piezo Material: P5
- Dimensions: 10mm diameter x1mm thickness
- Resonant frequency fr: 199KHz±5%
- Electromechanical coupling coefficient Kp:≥73%
- Resonant impedance Zm: ≤19 Ω
- Dielectric Loss Tan∂: =1.3%
- Static capacitance Cs: 1400pF±20%@1kHz
- Test Condition: 23±3 °C 40~70% R.H.
- fr, Zm, Kp => Radial mode vibration application
- Cs => LCR meter at 1KHz 1Vrms
200Khz Piezoelectric ceramic disc Applications: Piezo transducer vibration, matter dispersion, sonar transducer, Ultrasonic Sensor, wall thickness sensor, material stress sensor.
