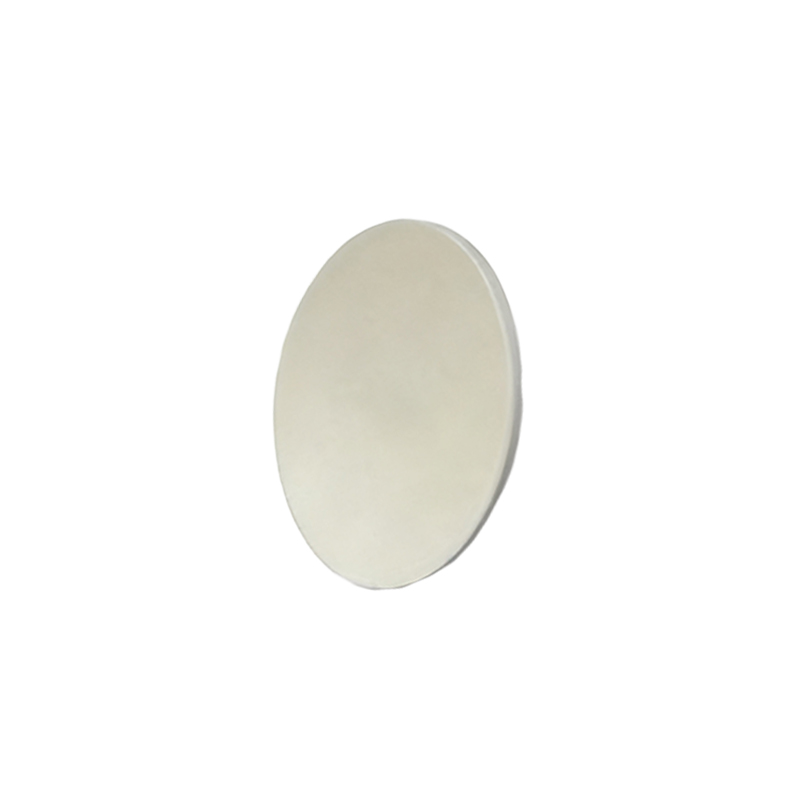

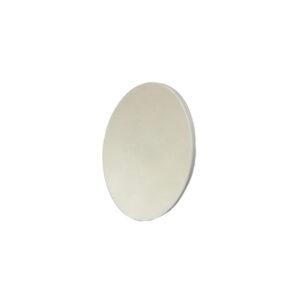

2.1Mhz HIFU piezoelectric ceramics,Thickness mode vibration application.
- model:HCPP4H20R30
- Piezo Material: PZT-4
- Dimensions: 20 Diameter x 30 Curvature (Radius)
- Resonant frequency fr: 2.1MHz±10%
- Electromechanical coupling coefficient Kp:
- Resonant impedance Zm: ≤0.71 Ω
- Static capacitance Cs: 3600pF±15%@1kHz
- Test Condition: 23±3 °C 40~70% R.H.
- fr, Zm, Kp => Thickness mode vibration application
- Cs => LCR meter at 1KHz 1Vrms
2.1Mhz HIFU piezoelectric ceramics Applications: Mist Generation, Untrasonic beam concentrator and others.
