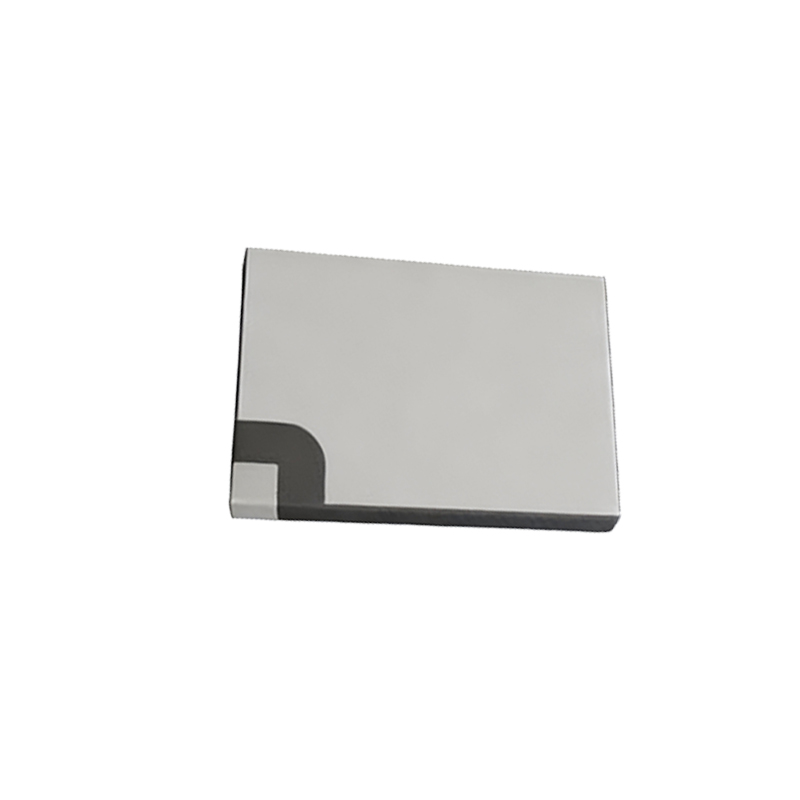

1Mhz Piezoelectric Ceramic Plate is20×15×2.1mm，Silver electrodes being on both sides (R configuration).
Thickness mode vibration application
- model：HCPP4P2015T201
- Piezo Material: PZT-4
- Dimensions: 20x15x2.1mm
- Resonant frequency fr: 1 MHz ± 4%
- Electromechanical coupling coefficient Kt: ≥48%
- Resonant impedance Zm: ≤1.9 Ω
- Static capacitance Cs: 1700pF±10%
- Dielectric Loss Tan∂: 0.26
- Test Condition: 23±3 °C 40~70% R.H.
- fr, Zm, Kp => Thickness mode vibration application
- Cs => LCR meter at 1KHz 1Vrms
1Mhz Piezoelectric Ceramic Plate ideal for electricity generation and pressure sensor.
