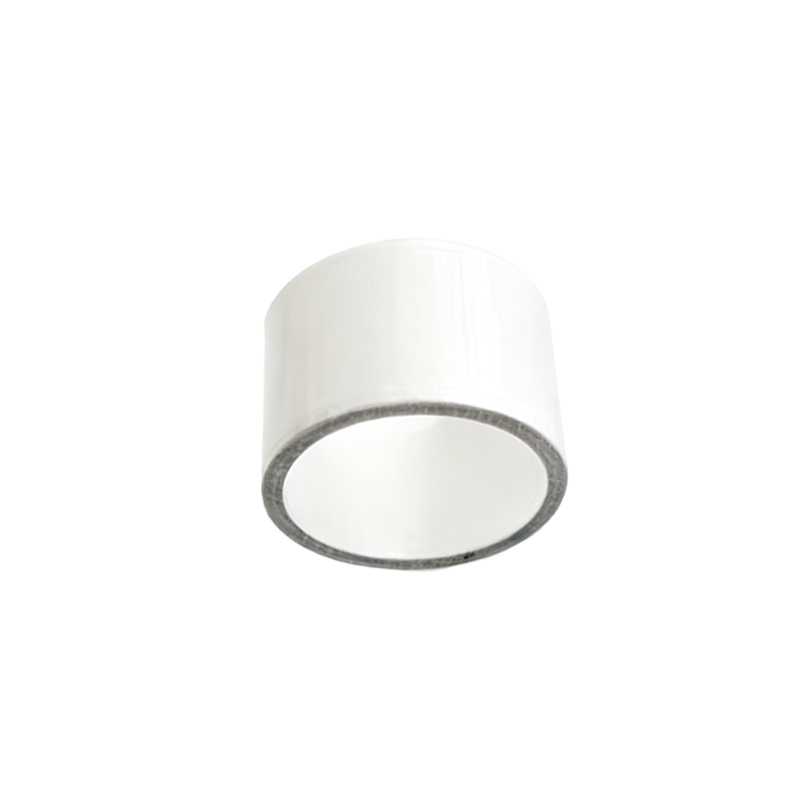

151Khz Piezoelectric ceramic tube is 7×5×7mm，Radial mode vibration.
- Model：HCPP5T75T5
- Piezo Material: PZT-5H
- Dimensions: OD 7 x ID 5 x Th 5mm
- Resonant frequency fr: 151 KHz ± 5%
- Dielectric Loss tg δ: <2%
- Static capacitance Cs: 1900pF±20%
- Test Condition: 23±3 °C 40~70% R.H.
- fr, Zm, Kr => Radial mode vibration
- Cs tanδ => LCR meter at 1KHz 1Vrms
151Khz Piezoelectric ceramic tube Applications, among others, are: Underwater communication, Ultrasonic Sensor, Vibration Sensor, Pressure sensor, Vibration generation.
