135Khz Piezoelectric Stack Actuators DISC is made up of several piezoelectric ceramic sheets and bonded with epoxy resin. These stacks can obtain a free travel significantly larger than that of a single piezoelectric ceramic chip, and maintain the response time of sub millisecond and lower driving voltage range.

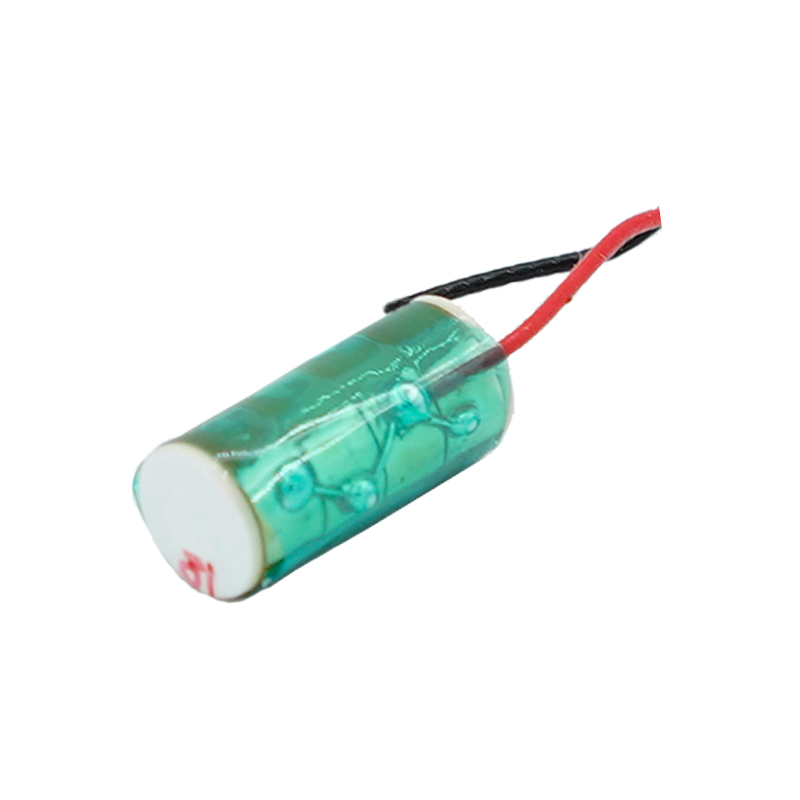

Stack：HCSD803T9
Drive Voltage：200V
Dimensions：8.3×9mm
Capacitance：2200nF±15%
Resonant Frequency：355Khz
Displacement：12µm ± 15%
Blocking Force：1800N
scope of customization

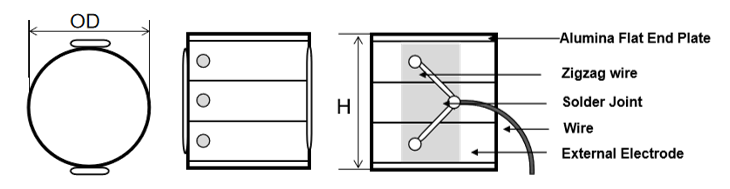

Dimensions/mm：Φ8.3
Drive Voltage/V：0~150
Displacement/μm：9
Characteristic：Sub millisecond response,Submicron resolution,Square & Round & medium hole,Low power consumption, anti magnetic interference,It can be used in vacuum environment,Size / voltage can be customized.
135Khz Piezoelectric Stack Actuators DISC other thickness customization.
