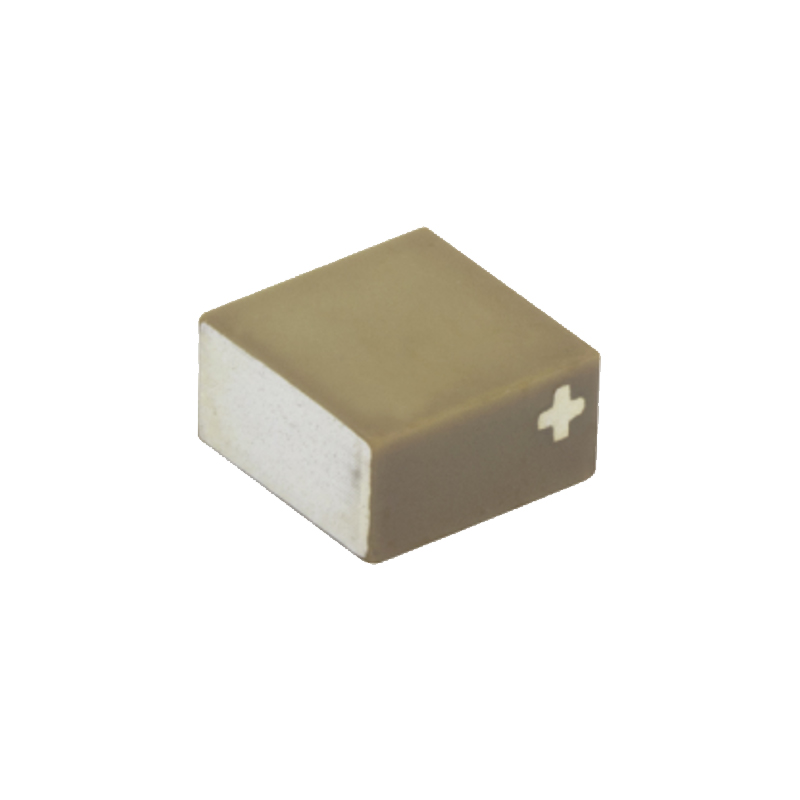

1350Khz Piezoelectric Chips Actuators square The displacement is 1 ‰ of its thickness, the standard thickness is 2mm / 3mm, and the flatness is less than ± 5 μ m.

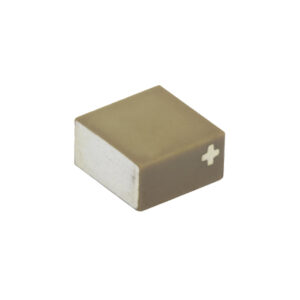

Chips：HCCS009009T008
Drive Voltage：75V
Dimensions：0.9×0.9×0.8mm
Capacitance：9nF±15%
Resonant Frequency：1350Khz
Displacement：0.7µm±15%
Blocking Force：32N
scope of customization
Dimensions/mm：0.9×0.9~14×14
Drive Voltage/V：0~75/100/120/150
Displacement/μm：0.7~3.6
Characteristic：Sub-Micron Resolution、Submicron resolution、Square & Round & medium hole、Low power consumption, anti magnetic interference、It can be used in vacuum environment、Size / voltage can be customized.
1350Khz Piezoelectric Chips Actuators square support other thickness customization.
