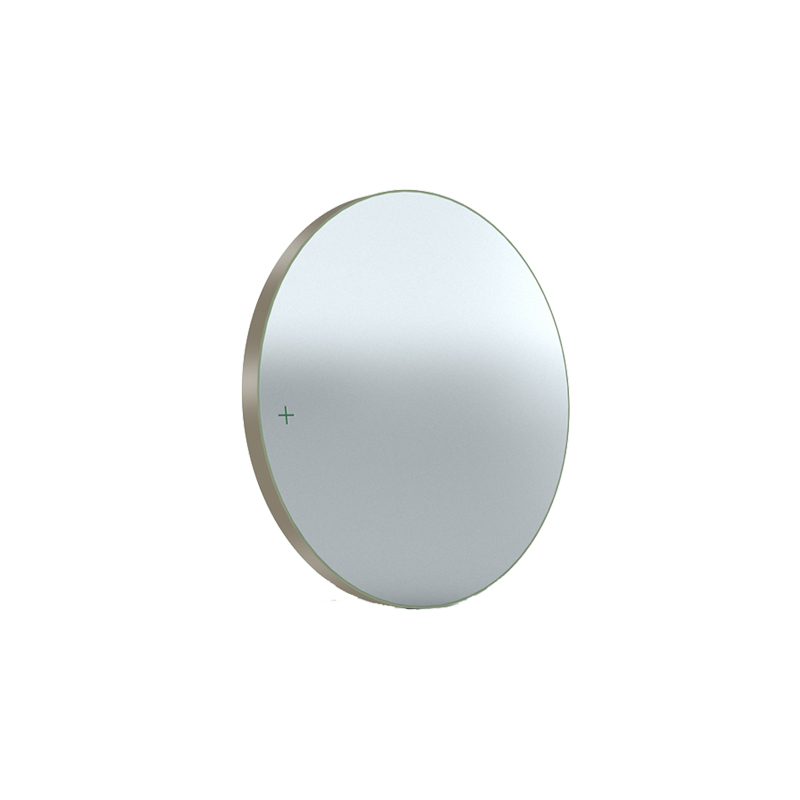

10Mhz Piezoelectric ceramic disc is 10×0.2mm，Piezoelectric Ceramic disc. Silver electrodes being one on each side (S configuration). Thickness vibration mode vibration.
- model：HCPP4D10T002
- Piezo Material: P4
- Dimensions: 10mm dia. x 0.2mm thickness
- Resonant frequency fr: 10.1 MHz ± 7%
- Electromechanical coupling coefficient Kt:≥50%
- Resonant impedance Zr: ≤0.08 Ω
- Static capacitance Cs: 4000pF±25%@ 60Hz/1V
- Dielectric loss: ≤ 0.28%
- Test Condition: 23±3 °C 40~70% R.H.
- fr, Zm, Kp => Thickness vibration mode
- Cs => LCR meter at 1KHz 1Vrms
10Mhz Piezoelectric ceramic disc Applied to ultrasonic sensors and vibration sensors.
