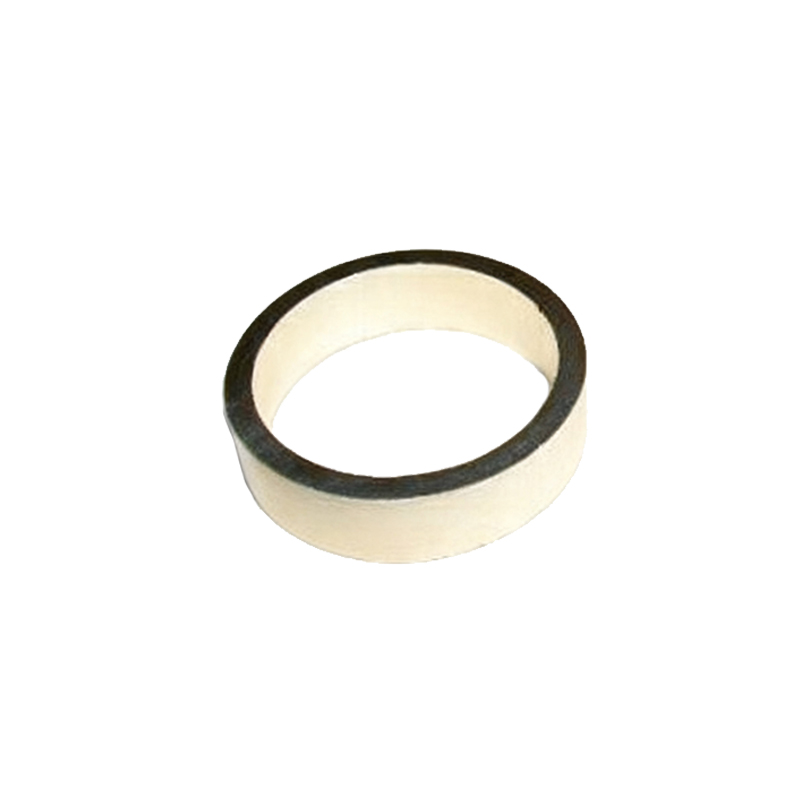

100Khz Piezoelectric ceramic tube is Ø12Ø10x3mm 100 KHz. Radial mode vibration
- Model：HCPP5T1210T3
- Piezo Material: PZT-5A
- Dimensions: OD 12 x ID 10 x Th 3mm
- Resonant frequency fr: 100 KHz ± 5%
- Electromechanical coupling coefficient Kr: >25%
- Dielectric Loss tg δ: <0.5%
- Static capacitance Cs: 1000pF±20%
- Test Condition: 23±3 °C 40~70% R.H.
- fr, Zm, Kr => Radial mode vibration
- Cs tanδ => LCR meter at 1KHz 1Vrms
100Khz Piezoelectric ceramic tube Applications, among others, are: Underwater communication, Ultrasonic Sensor, Vibration Sensor, Pressure sensor, Vibration generation.
