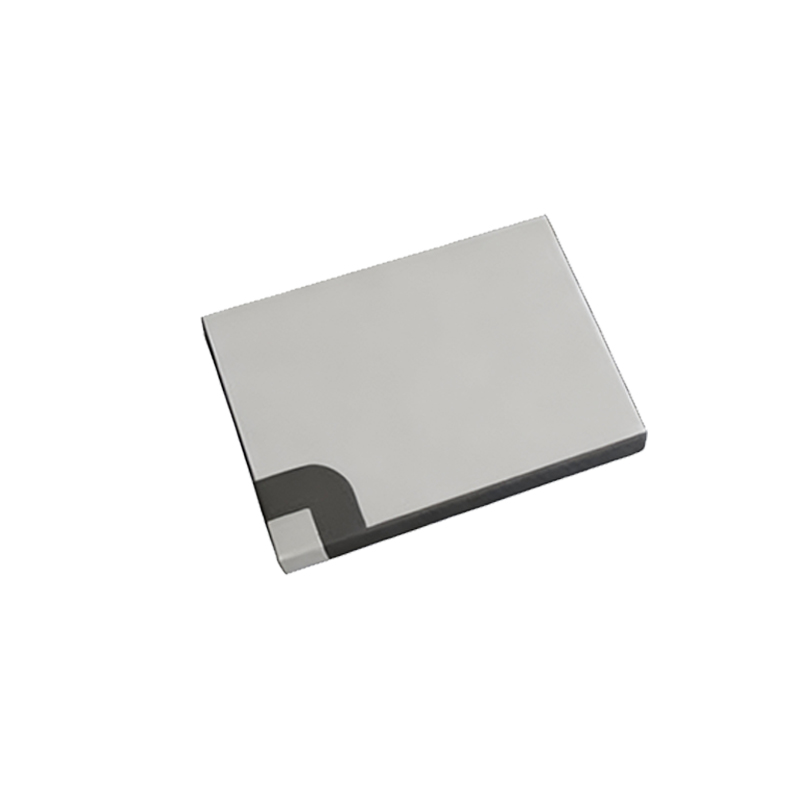

1.5Mhz Piezoelectric ceramic plate is 20 × 15 × 1.4 mm.
- Piezo Material: PZT4
- Dimensions: 20x15x1.4mm
- Resonant frequency fr: 1.5 MHz ± 4%
- Electromechanical coupling coefficient Kt: ≥50%
- Resonant impedance Zm: ≤0.91 Ω
- Static capacitance Cs: 2490pF±10%
- Dielectric Loss Tan∂: 0.24
- Test Condition: 23±3 °C 40~70% R.H.
- fr, Zm, Kp => Thickness mode vibration application
- Cs => LCR meter at 1KHz 1Vrms
1.5Mhz piezoelectric ceramic plate is applied in Precision mechanics and mechanical engineering, Life sciences, Medicine and Biology.
