Piezoelectric ceramics & ultrasonic sensors
80Khz Piezoelectric ceramic block is 19.5×11.5×6.5mm， with Silver Layer electrodes on both ends. The end (smallest rectangular side) with a + sign is the Positive electrode. 80Khz Piezoelectric ceramic block Applications: …
312Khz Piezoelectric Ceramic Plate is 60×5×0.3mm， Both electrodes on one side (R configuration). Vibration Mode Lengthwise Width Resonant frequency fr 25 KHz±5% 312 KHz±5% Resonant impedance Zr ≤30 Ω ≤2.0 …
41Khz Piezoelectric Ceramic Plate is 45×45×2.8mm， ideal for electricity generation and pressure sensor. Silver electrodes being one on each side (S configuration).Lengthwise mode vibration application. 41Khz Piezoelectric Ceramic Plate Applications: …
8Mhz Piezoelectric Ceramic Plate is 6×2.5×0.25mm， ideal for vibration sensors. Silver electrodes being one on each side (S configuration). Thickness mode vibration. 8Mhz Piezoelectric Ceramic Plate Applications: Ultrasonic Sensor, Vibration …
3.8Mhz Piezoelectric Ceramic Plate is 3×3×0.55mm. is ideal for instrument pickups (bridges). Violins, Mandolins and other instruments will play very live thanks to our special material mixture and sinterization method.It …
108Khz Piezoelectric Ceramic Plate is 26×16×0.7mm， ideal for electricity generation and pressure sensor. Silver electrodes on both sides (S configuration)Width mode vibration Applications: Ultrasonic Sensor, Vibration Sensor, Material stress sensor, …
78Khz Piezoelectric Ceramic Plate is 21×21×0.55m，ideal for electricity generation and pressure sensor. Silver electrodes being one on each side (S configuration).Lengthwise mode by impedance analyzer 78Khz Piezoelectric Ceramic Plate Applications: …

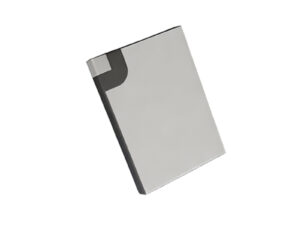

710Khz Piezoelectric Ceramic Plate is20×15×3mm， ideal for electricity generation and pressure sensor. Silver electrodes being on the same side (R configuration).Thickness mode vibration application 710Khz Piezoelectric Ceramic Plate Applications: Precision …

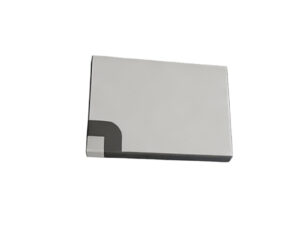

1Mhz Piezoelectric Ceramic Plate is20×15×2.1mm，Silver electrodes being on both sides (R configuration).Thickness mode vibration application 1Mhz Piezoelectric Ceramic Plate ideal for electricity generation and pressure sensor.

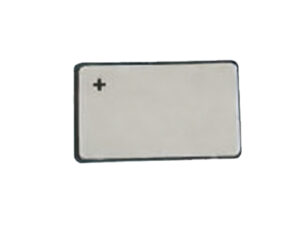

190Khz Piezoelectric Ceramic Plate is 13.1×8.9×1mm . Silver electrodes being one on each side (S configuration).Lengthwise vibration mode by impedance analyzer. 190Khz Piezoelectric Ceramic Plate Applications: Ultrasonic Sensor, Vibration Sensor, …
